THE ROLLS-ROYCE PHANTOM INTRODUCTION

“Strive for perfection in everything you do. Take the best that exists and make it better. When it doesn’t exist, design it.” Sir Henry Royce

The founder and Chief Engineer of Rolls-Royce Motor Cars gave us these words almost a century ago, but they remain as valid today as they were then. It is this philosophy that has guided the creation of the new Rolls-Royce Phantom, manufactured at the company’s headquarters near Goodwood, West Sussex, on the south coast of England.

Its unveiling marks the renaissance of what is arguably the most famous brand name in the automobile world, and a name that has become a by-word for excellence in all fields.

‘Project Rolls-Royce’ began on 28 July 1998, when BMW Group became custodians of the marque. The new Rolls-Royce Phantom is the result of an intense four year design and engineering programme that has not only produced a new motor car, but also established a manufacturing plant and a new company. Each facet of the programme has been faithful to Royce’s maxim. In creating the company, motor car and plant, perfection has been the goal.

The Phantom has authentic Rolls-Royce design proportions combined with 21st century engineering integrity. Exterior authenticity embraces a long bonnet and wheelbase, short front and long rear overhangs, a strong C-post and discreet rear window.

The new Rolls-Royce Phantom has generous interior dimensions and a prominent seating position for comfort and authority. Rear seat passengers sit alongside the C-post, well back in the motor car where they enjoy the highest levels of privacy and safety.

Adopting a fundamental rather than an incremental approach to designing a new motor car, the Rolls-Royce Phantom benefits from the application of leading edge technology, most notably in its aluminium space frame structure. As well as being far lighter than a steel shell of an equivalent size, it is significantly more rigid to the benefit of both handling and ride comfort.

Central to the design has been the concept of relaxed control over the motor car. This can be seen in the elevated driving position, the effortless operation of the controls and the refined performance from the engine.

A purpose-designed 6.75-litre V12 offers ample power and huge reserves of torque combined with exceptional fuel economy: headline figures include the 5.7 seconds it needs to sprint from 0-60 mph and the 25.7 mpg (11.0 ltr/100kms) it returns over the EU extra urban fuel economy cycle. Maximum power is 453 bhp (338 kW) with peak torque of 720 Nm (531 lb ft) reached at 3,500 rpm. More significantly, 75 per cent of that torque is available from 1,000 rpm.

Drive is to the rear wheels via a ‘shift-by-wire’ six speed automatic transmission. The chassis has sophisticated double wishbone front and multi-link rear suspension allied to self-levelling air springing on all four wheels.

The huge wheels and tyres have been specially developed for the Rolls-Royce Phantom: it is the first car in the world to feature the advanced PAX run-flat tyre system as standard.

Naturally the highest levels of craftsmanship and the best quality materials can be found in the motor car. It takes, for example, up to 18 hides to complete the interior of the car where the soft natural grain leather is complemented by exquisite cabinetry and fine veneers.

But the project has not been about achieving a single superlative – the biggest, the fastest, the most powerful – but rather about finding the optimum balance of all attributes. This is not a concept new to Rolls-Royce…

“Rolls-Royce supremacy is the reward of superlative design and meticulous care in manufacture. Its secret lies in the proved excellence of the Rolls-Royce productions in Durability, Trustworthiness, Economy, Speed, Silence and Comfort. Many cars have attempted to specialise in one or other of these points, but the Rolls-Royce is alone in that it embodies them all.” Rolls-Royce sales brochure, 1928

With a Rolls-Royce, superlatives are found in the details. Details like the Phantom’s unique independently opening rear coach doors, designed to make entry to and exit from the motor car as easy, as comfortable and as graceful as possible. Details like the retractable Spirit of Ecstasy, which can lowered out of sight at the touch of a button.

And details like the purpose-designed umbrellas neatly stowed in the doors and the synchronised wheel centres, which keep the famous interlinked RR badges on all four wheels in an upright position at all times.

But perhaps the essence of the Rolls-Royce Phantom is best summed in one word, a word that can be found in no dictionary: ‘waftability’.

Its origin can be traced back to the turn of the last century. In 1907, a writer from the British motoring magazine Autocar described riding in the Rolls-Royce 40/50 hp as “… the feeling of being wafted through the countryside.” Engineers at Rolls-Royce quickly coined waftability to encapsulate that sensation.

Waftability is achieved in many ways. Effortless acceleration from low engine speeds is one. Near silence of operation is another. A cosseting ride is a given as is the refinement and comfort of the interior.

But waftability can also be found in the lines of the motor car itself: standing still the Phantom looks ready to glide off. It’s in the natural operation of the controls and in the minimum demands placed on the driver. The feeling can even be found in the masterly view from the driver’s seat, over the long bonnet and front wings to the Spirit of Ecstasy and beyond.

Tony Gott, chairman and chief executive of Rolls-Royce Motor Cars, says: “For nearly 100 years, Rolls-Royce has been the icon of motor engineering and design. The name has entered the language as the expression of perfection in a range of endeavours far beyond the motor industry.

“The new Rolls-Royce Phantom is, we believe, entirely in keeping with that long and illustrious heritage yet is totally contemporary in its design and technology. Its name evokes the personality of the inter-war Rolls-Royce Phantom I, II and III models, some of the best designed and finest engineered motor cars to bear the Rolls-Royce name.

“And it reflects timeless values of quality, distinction and authority, combining the best of the past with the best modern design, engineering and technology to re-interpret the role of Rolls-Royce in the 21st century.”

DESIGN

Background

Authenticity is the key element behind the design process that has created the new Rolls-Royce Phantom. Although a genuinely ‘blank sheet’ design and built on its own unique platform, the Phantom is clearly a Rolls-Royce. But instant recognition goes far deeper than the famous radiator grille and the Spirit of Ecstasy.

Ian Cameron, Chief Designer of Rolls-Royce Motor Cars, explains: “Our absolute priority was to create a motor car that is clearly a Rolls-Royce even when the radiator grille is not in view. More than this, the new car has to stand apart from all others on the road.”

Authenticity

Among the features integral to Rolls-Royce design are a long bonnet with a short front overhang and, conversely, a long overhang at the rear. A long wheelbase is essential for excellent interior space and, when married to the proud, upright front formed around the vertical Rolls-Royce radiator and high mounted headlamps, helps create a car with genuine presence.

Another Rolls-Royce feature is the roofline which increases in depth as it nears the rear of the car where it blends into a strong C-post. The gentle downward curve of the roofline is mirrored by a subtle upward curve, running from back to front, along the bottom of the car. Others include the discreet rear window – which combines with the C-post to offer greater privacy for the rear passengers – and the ‘broad shouldered’ side profile.

But above all, every Rolls-Royce has to have the correct proportions: the required interior package determines the overall dimensions – height, width, wheelbase and length – and even influences decisions such as wheel size. The correct proportions bring that air of authority integral to the marque and means that, although many Rolls-Royce models of the past – and indeed, the new Phantom – are large cars, they have a sense of balance.

Undercover in London

Design work on what was originally known as ‘Project Rolls-Royce’ began in earnest in early 1999 and progressed in great secrecy, even though the initial designs were created at the heart of one of the busiest capital cities in the world: London.

In a design studio near Hyde Park and known internally as ‘The Bank’ – the offices were formerly used as a bank – three exterior and two interior teams of designers led by Ian Cameron started work on the new car. Although the front door of ‘The Bank’ opened onto the street, security was never a problem: drawings and sketches were locked away each night in the old bank vault.

Design influences were never far away. Hyde Park is close to the affluent Mayfair and Belgravia areas of the capital. Here the design team would regularly see the Spirit of Ecstasy in its natural environment.

As they started to shape the Rolls-Royce Phantom, the design team identified what they considered to be significant models from the past, quickly establishing that creating a Rolls-Royce is about finding the right balance of aesthetics and engineering.

For example, the 1930s Phantom II incorporated all the authentic Rolls-Royce design elements – large wheels, a short front overhang, long bonnet and a rising sill line. The latter gives the car a ‘take-off’ stance as if the nose of the car is rising as it accelerates away and is a visual reference to the effortless power encapsulated in the concept of waftability.

From an engineering standpoint the Silver Shadow, the first monocoque Rolls-Royce, bristled with advanced features which were combined with striking but simple styling. The result represented a bold modernism at launch in 1965, which was greatly admired by the team.

From a pure styling point of view, the Silver Cloud from the 1950s was deemed to be the quintessential post-war Rolls-Royce, combining presence with elegance and reserved lines with perfect proportions.

All three exemplify the air of authority expected from a Rolls-Royce and which has been perfectly captured in the Phantom.

Exterior

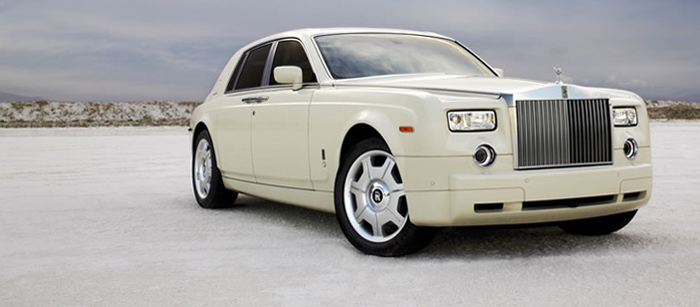

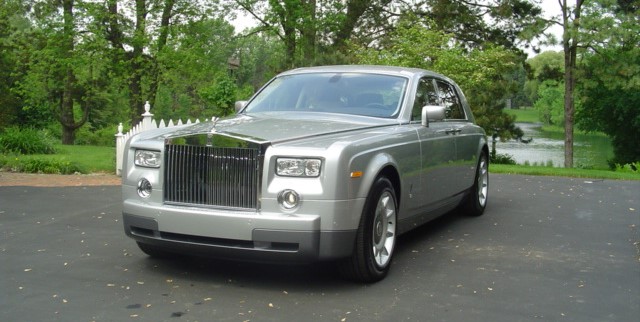

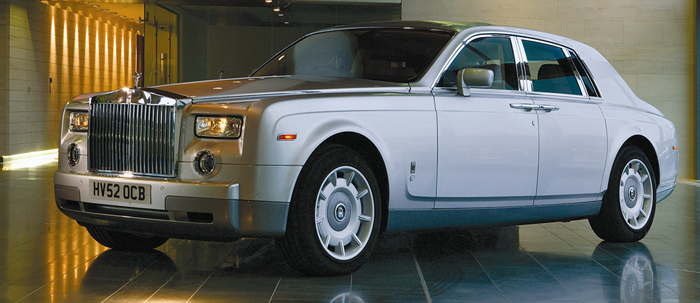

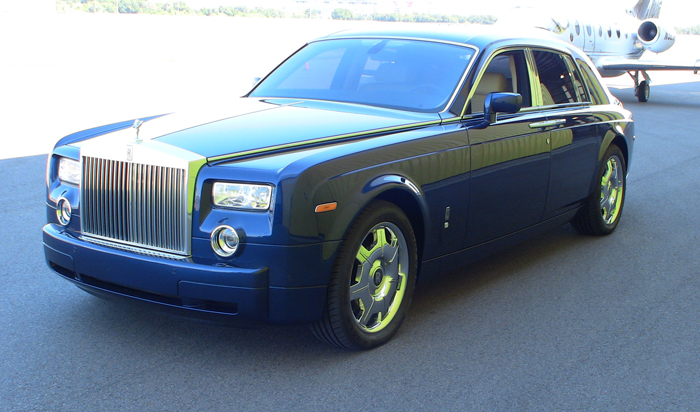

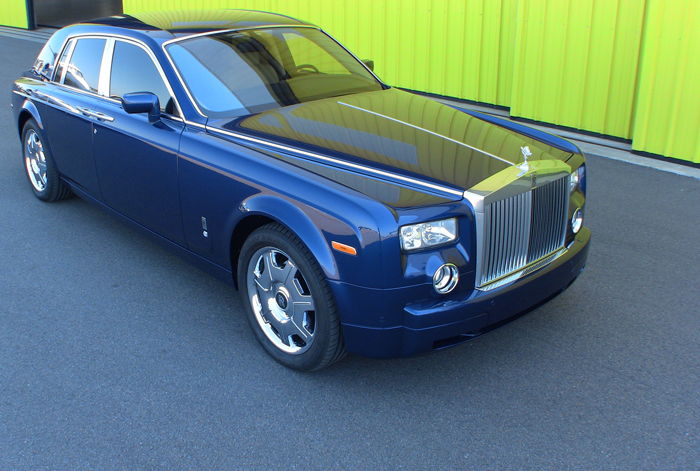

The new car has a long wheelbase and long bonnet with the front axle positioned forward of the engine for optimum weight distribution and resulting in a short front overhang. Its upright stance has been created around the traditional radiator grille.

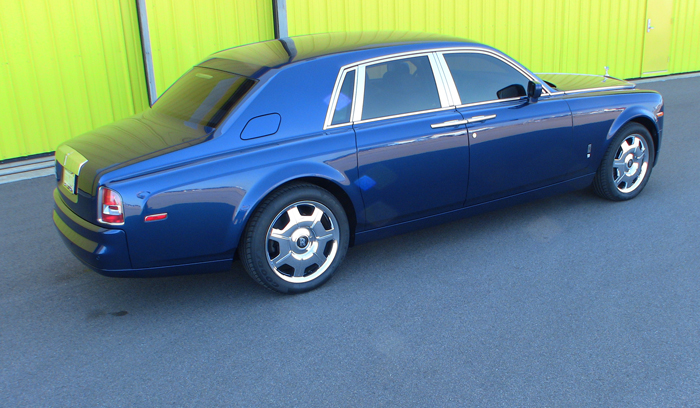

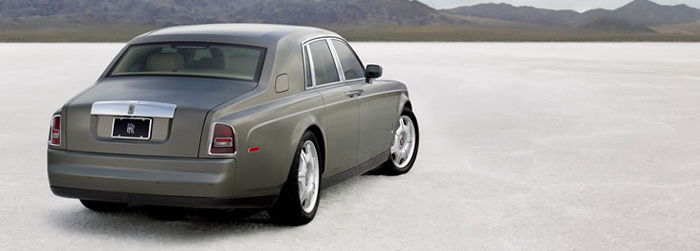

Its roof line falls gently to the rear as the window drops away to accentuate the dramatic proportions which are balanced by the traditional rising sill.

A generous C-post gives a sense of strength and security while the profile is dominated by the Phantom’s huge wheels and tyres. Specially created for Rolls-Royce, the tyre rolling diameter is 790 mm (31 ins) making them the largest fitted to any production car, but by applying the correct proportions they are entirely in keeping with this substantial motor car.

The size of the motor car is a balance between design and engineering requirements. For example, a prominent seating position and the correct interior space determined the wheelbase, floor height, width and standing height, which in turn determined the axle position and wheel size. As a result, the new car’s wheelbase is 3570 mm (140.6 ins) while the overall length is 5834 mm (229.7 ins). It is 1632 mm (64.3 ins) tall and 1990 mm (78.3 ins) wide. The 460 litre/16.2 cu ft (DIN) boot is large enough to take four sets of golf clubs with ease.

From defining the architecture of the car to producing a final design, the process was remarkably short. In May 1999, the Bank studio was augmented by another secret facility, a modelling studio in nearby Holborn, which was given the internal codename ‘Bookshop’.

Here each of the three exterior design teams created two design proposals as 40 per cent scale models – large enough for valid decisions to be made, but small enough to be quickly modified. From those six design themes, three were chosen to be modelled at full scale before, in December 1999, the final design was chosen.

Interior

The interior design, meanwhile, was formed following the same design principles which helped shape the exterior. Principal demands included a feeling of authority over the motor car, which places minimum demands on the driver who remains comfortably in command at all times.

A natural and relaxed driving environment is created by the precise alignment of the driving position which ensures the driver sits perfectly in front of the steering wheel and pedals rather than with one or the other being unnaturally offset.

As well as a commanding view down the long bonnet and wings to the radiator shell and Spirit of Ecstasy, a Rolls-Royce driver and passengers also enjoy a prominent position thanks to the elevated seats which raises them above most other road users and adds to a sense of security. The driver’s eyeline is mid-way between that of a conventional saloon and of a large 4×4.

Initially, the interior package was created exclusively in a virtual world using the most sophisticated CAD software and simulation tools available, allowing swift convergence between interior and exterior packages.

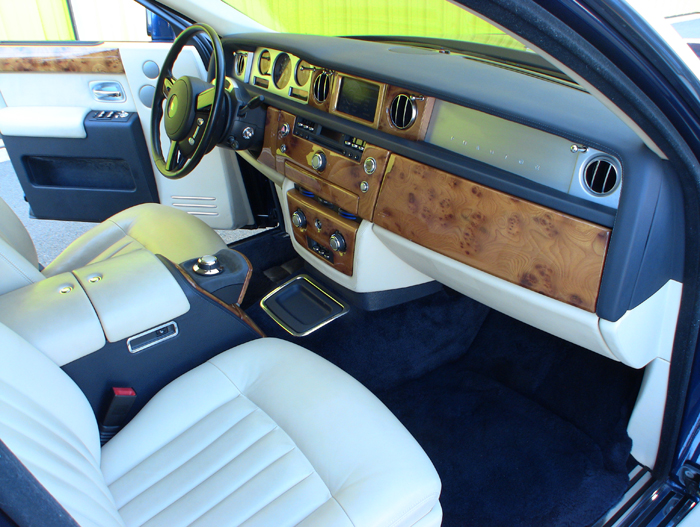

Front interior compartment

The primary objective was to make the Rolls-Royce Phantom incredibly easy to drive with intuitive major controls displayed in an uncomplicated setting. To give the driver of the Rolls-Royce Phantom the desired sense of relaxed control over the motor car the electrically operated front seats enjoy an elevated position. Both are fully adjustable with a multi-contour backrest, memory function and three stage heating.

Switchgear follows traditional

Rolls-Royce principles of simplicity and clarity offering a modern interpretation of traditional values. Great care has been taken to balance the need to access a large number of functions without increasing complexity.

As a result, the major controls will be recognisable to long-standing Rolls-Royce owners with iconic ‘organ stops’ still used to control the flow of air to the face level vents and which have been joined by ‘violin keys’, similar in shape to the tuning heads on a violin, for minor switchgear. Everyday audio and climate control functions are accessed conventionally.

A column-mounted electronically-controlled gear selection lever is retained, offering the choice of PRND (park, reverse, neutral and drive). A slim, leather covered three-spoke steering wheel incorporates controls for the telephone, audio and navigation systems and has an elliptical cross-sectioned rim especially designed to allow a comfortable driving position with the hands at ‘twenty past eight’. The wheel also has a button which allows the driver to access a Low mode setting for the gearbox.

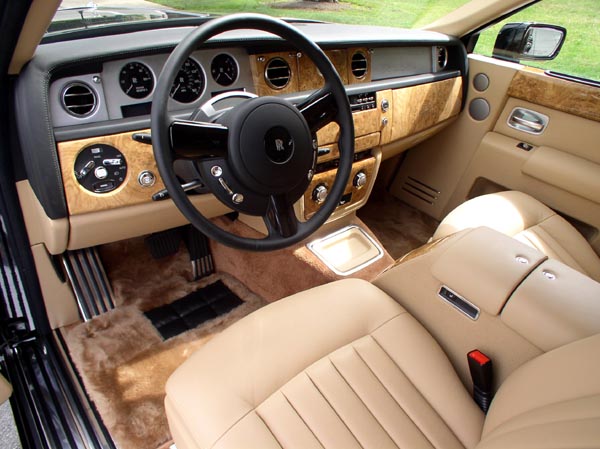

Ahead of the driver is an instrument cluster comprising three black-faced circular dials. A central speedometer is flanked on one side by a split gauge for fuel and for water temperature and a unique power reserve gauge which communicates the ‘adequacy’ of available power (see Driving for more details).

A notable innovation appears in the centre of the dashboard. A veneered panel housing the analogue clock swivels to reveal a monitor for vehicle settings, satellite navigation, on-board television and telephone system. A controller, discreetly stowed in the centre console when not required, allows the driver to access these various specialist functions.

Starting point for the sophisticated ventilation system was to minimise the intrusive effect of direct forceful airflow, by providing indirect airflow for greater comfort. The circular air conditioning and heating controls are familiar items, controlling the six temperature zone interior with individual fan control for all four quarters of the cabin.

Horizontal vents hidden in the instrument panel send a curtain of cooling air downwards to fall gently in the laps of the driver and passenger. Complementing a conventional heated rear window, the front side windows of the Phantom are heated for effective, noiseless demisting.

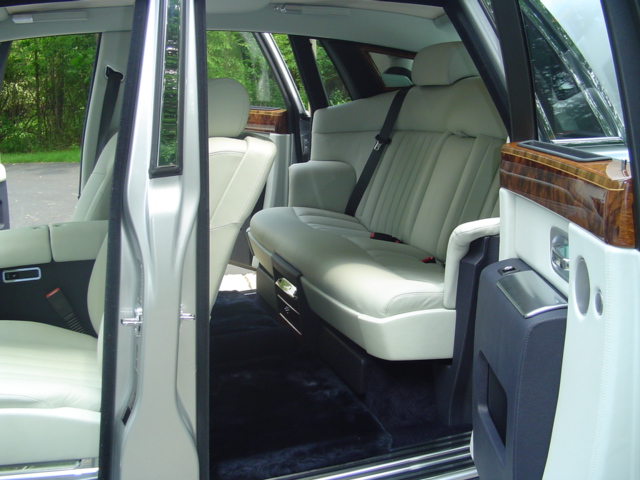

Rear interior compartment

An early target was to develop a rear compartment unique in every respect. This saw the design team take a fundamental step back and turn conventional thinking on its head. The starting point was to ask a simple question: “What is the best way to get into and out of the rear of a motor car?”

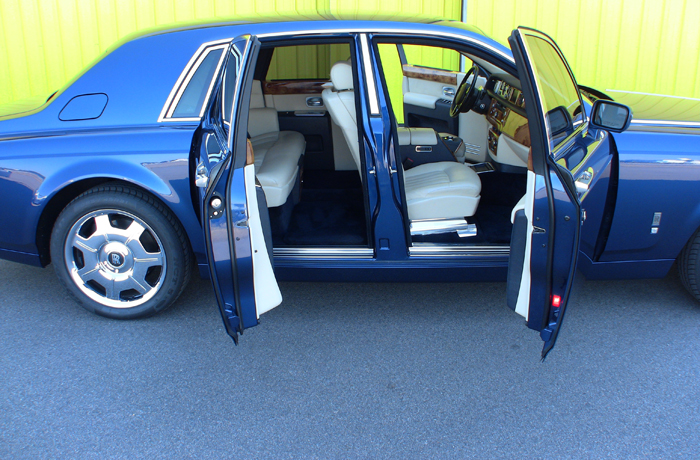

The answer was coach doors, hinged at the rear, which offer many elegant advantages. An ordinary saloon with conventional front-hinged doors forces passengers to clamber out of the rear, but they exit far more gracefully from a Rolls-Royce Phantom with coach doors.

With conventional doors, entry to the rear compartment is normally made backside first: getting in or out is a matter of twisting, turning and ducking. In a Rolls-Royce Phantom, thanks to the coach doors and architecturally rectangular door frame – where the roof is naturally at its highest point – all but the tallest simply walk into the car, turn once inside and then sit.

Once seated, the door can be closed automatically simply by pressing a small button on the C-post. All in all, it’s a profoundly different experience. Because they allow the passengers to sit further back in the body of the car, coach doors also provide improved side impact protection – so much so that the Phantom has no need for rear side airbags.

Another benefit is that rear passengers are afforded a degree of privacy without having to resort to darkened windows or curtains. Each C-post contains a panelled quarter mirror, which from within appears to be a continuation of the side window. And when both front and rear doors are open they form a protective barrier around a passenger entering or leaving the car.

Despite the obvious safety benefits, before the coach doors could be adopted many legislative obstacles had to be overcome. Rolls-Royce is the only motor manufacturer in the world to be allowed to build a car with independently opening coach doors. (See Engineering to discover how this was achieved.)

The coach doors house another surprise feature. Within each rear door is an umbrella which is released at the touch of a button. After use, it can be stored even when wet since special drainage channels are incorporated in the coach door. The umbrella canopy material has been coated with Teflon to ensure it will not rot even if stowed when wet.

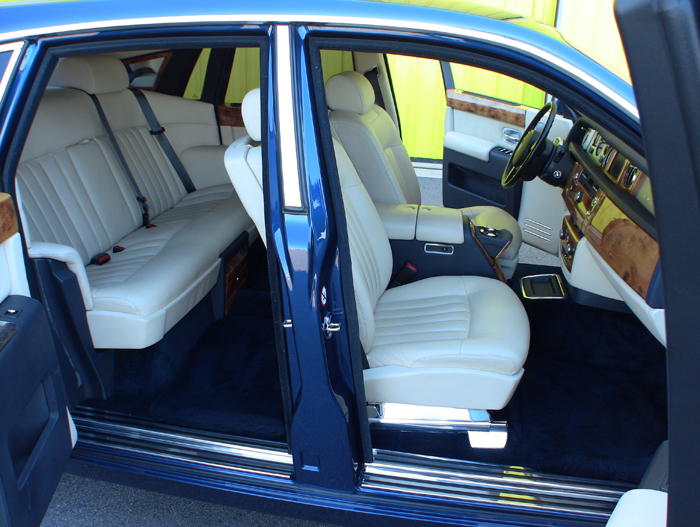

Once inside, the design called for an open, almost flat, rear floor to allow passengers to move easily from one side of the car to the other – to exit the car at the kerb side, for example – and to create an inviting ambience. Maximum rear headroom was also a priority, with a figure of 979 mm (38.5 ins) achieved.

Raised ‘stadium’ seating in the rear allows passengers to sit 18 mm (0.7 ins) higher than those in the front affording an excellent forward view. The long wheelbase helps to create more legroom. Seating arrangements are available in two different configurations: lounge and theatre.

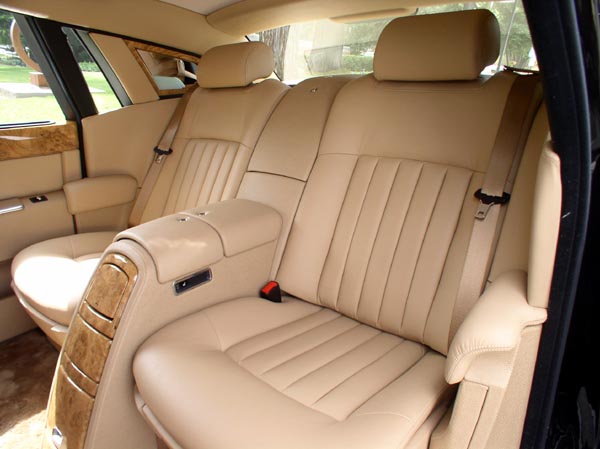

Lounge seats have room for three passengers and are distinctly curved at their outer sides. With no lateral separation, this seating arrangement allows rear passengers to turn easily towards each other on a journey making it easier to converse and enjoy an intimate environment.

Available as an option is the theatre seating concept which provides twin individual seats separated by a centre console that can house personal entertainment equipment, a drinks cabinet or other items.

Materials

As expected from a Rolls-Royce, the interior features the finest materials found in any car. The leather – as many as 16 hides are used to trim each Phantom – is the softest used in the automobile industry. In texture and feel it is close to anilin leather, such as that used in the apparel industry, yet is just as durable as traditional automobile leather.

The softness comes from a new drum pigmentation process which permeates the colour throughout the hide. Because the colour is in the grain, the leather retains its natural look and feel and, as a secondary benefit, the process banishes the ‘creaking’ prevalent in conventional leather seating.

In the past, automotive hides have been stretched and then painted to the required shade. The new process is, therefore, a significant improvement over traditional practice.

Two types of hide finishes are used in the Phantom – a natural grain leather for seating and a textured ‘tipped’ leather for door paniers and centre consoles. All the leather-covered features are created using a combination of modern techniques and traditional skills – all 450 leather pieces in the car are cut using a laser guide to guarantee accuracy but hand finishing ensures that ultimate quality levels are reached.

No fewer than six different veneers are available for the woodwork: Figured Mahogany from West Africa; Burr Walnut, Birdseye Maple and Black Tulip from North America; and Oak Burr and Elm Cluster from Europe. While the shades and ambience differ greatly depending the wood used, the quality of the craftsmanship remains second to none. The wood is used architecturally, like three dimensional fitted cabinetry with veneers placed on wooden substrates.

As a result, passengers in the Rolls-Royce Phantom enjoy the tangible experience of touching real wood. Exquisite craftsmanship means that straight grain veneer is featured on all horizontal surfaces while vertical surfaces have feature grain with a ‘bookmatched’ mirror finish within each panel and across the cabin. Cabinetry featuring marquetry with boxwood inlays and crown cut veneers is available as an option.

All veneers used come from fully sustainable managed forests. Importantly, aside from Black Tulip, the veneers are neither bleached nor stained allowing natural properties and grains to shine through.

The quality of materials is also reflected in the other fixtures and fittings: every surface is covered with the genuine article, a case of what you see is what you feel.

Deep pile carpets are covered with sumptuous lambswool rugs – foot rests are optionally available – while metal surfaces have either a high polish Sterling finish, such as the air vents, organ stops and lighting consoles, or a satin finish, which is used on the door handle surrounds and steering column stalks. The headlining is of a wool and cashmere blend providing a light and airy contrast to the leather surface of the central roof console.

Light fittings, which can be found in the front and centre roof consoles and in the C-posts, are art-deco inspired and provide two reading lights in the front and twin reading lights for each side in the rear. Ambient interior lighting for night time driving is provided by LEDs in the roof while a brighter ‘boulevard’ setting allows rear seat passengers to see each other – or be seen – without distracting the driver.

The final aspect of the design concerns choice. As well as the six different veneers available, there are no fewer than 18 exterior colours available either on their own or with a dual-tone colour for the lower body area.

In addition, two two-tone paint schemes are available. One version has the flanks of the car in a second tone to the other panels, while the other scheme features the contrast tone on the bonnet, roof and boot lid.

Add two different styles of coach lines and there are 68 basic exterior themes from which to choose. Choice continues on the inside where there are 15 different interior colours creating a total of 19 standard interior combinations.

But whatever unique combination of colours and textures is chosen, every Phantom exudes sophistication and discretion. The comfort, atmosphere and character unique to a Rolls-Royce is as much down to the simple, understated and timeless architecture as it is to the quality of materials and workmanship.

In every sense, the Phantom perpetuates the Rolls-Royce tradition.

DRIVING

“There is no evidence of an engine power … until that power is required. Then it comes in a volume and with a fluency that is almost incredible, having regard to any sign of sensible effort in its delivery.”
Rolls-Royce Phantom II brochure, 1929

A Rolls-Royce is often perceived as the perfect chauffeur-driven car where the primary concern is for the comfort of the rear seat passengers. But Rolls-Royce Motor Cars has a fundamental understanding of how the Phantom will be used, and the truth is rather different. While there will be occasions when an owner would prefer to enjoy his or her Phantom from the rear compartment, many owners will spend considerable time driving themselves.

From the outset, therefore, the search was for a perfect balance between front and rear, to make the motor car a pleasure to drive or to be driven in. As a result, the Phantom has been designed to be driven by its owner, and enjoyed by all. The choice of engine, the layout of the chassis and suspension, the ergonomics of the cabin and the exalted driving position have all been determined to satisfy the needs of both the person behind the wheel as well as the passengers.

Central to the design of the Phantom is the view from the driver’s seat. This position gives the driver a feeling of relaxed mastery, of being in control but using the minimum of effort. The view from behind the wheel, with the bonnet stretching out ahead, accentuates that feeling.

The driving position is integral to the Phantom’s authority packaging concept, placing the driver in total control by offering a precise alignment between steering wheel, pedals and seat. A naturally comfortable feeling behind the wheel is the result.

Ergonomic features include a large diameter steering wheel combining traditional Rolls-Royce cues with modern technology: in use it has the lightness and tactility of a precision instrument. The thin-rimmed wheel is wrapped in leather with a hidden joint to make it more comfortable to the touch and automatically tilts away when the electronic ignition key is removed to ease entry and exit. The engine is started and stopped via a push button mounted within the ignition panel.

Primary instrumentation is simple, clear and easy to use while more advanced features appear on demand via an ingenious rotary controller operating specialist functions including the standard satellite navigation system. Each control is perfectly weighted to give the quality feel demanded by Rolls-Royce. Just three black dials face the driver, comprising speedometer, combined fuel level/engine temperature gauge and power reserve gauge.

A tachometer has long been considered unnecessary in a Rolls-Royce – instead, today’s Phantom driver is kept aware of how much power is in reserve. For example, at 100 mph the engine has 75 per cent of its total power capability left.

In the past, power was always deemed to be ‘sufficient’. Today, exact power and torque outputs are no longer a well-kept secret and these key figures developed by the normally aspirated 6.75-litre V12 engine – described in greater detail in the Engineering section – are vital to the driving experience of the Rolls-Royce Phantom.

Principal among them is the plateau of torque available from a walking pace. The engine, developed exclusively for use in the Phantom, has a peak torque figure of 720 Nm (531 lb ft) but 75 per cent of that is available from just 1,000 rpm.

The result is the guarantee of instant ‘wafting’ power regardless of road or engine speed. Effortlessly, seamlessly and almost silently the Phantom rides on a tremendous wave of instantly accessible torque, whisking driver and passengers at considerable pace but with the minimum of fuss.

In-gear acceleration times give a clear indication of the elasticity of the drivetrain, the Phantom taking just 2.2 seconds to accelerate from 25 to 40 mph (40 to 65 km/h).

Outright performance, too, is exceptional. The Phantom accelerates from a standing start to 60 mph in just 5.7 seconds (0-100 km/h in 5.9 seconds). Perhaps even more impressive is the fact that the Rolls-Royce Phantom can cover 44 metres (144 ft) in just 4 seconds from a standing start. It’s a figure many sports cars would be hard pressed to match. Top speed has been limited to 149 mph (240 km/h). In North America, the use of all-season tyres limits maximum speed to 130 mph (208 km/h).

Double wishbone front and multi-link rear suspension combine to give the driver stress-free access to the Phantom’s full performance potential without compromising exceptional ride comfort. The rack and pinion steering gives delightful feel through the wheel and the perfectly balanced chassis, with 50/50 weight distribution, ensure precise handling with an excellent feedback of road and driving behaviour.

Naturally, for a Rolls-Royce motor car such performance is matched by an uncanny tranquillity. Even at speed, the V12 engine emits no more than a subdued, distant hum. At idle, it is virtually silent. Engineered into the motor car is a dual note exhaust: at low engine speeds, a valve in the system closes to increase back pressure and reduces the exhaust note to a mere whisper for understated arrivals and departures.

When combined with the synchronised wheel centres, the silence makes the Rolls-Royce Phantom appear to be gliding rather than driving away.

ENGINEERING

Sir Henry Royce was, first and foremost, an engineer. Perfection was his goal and he was never prepared to accept the status quo. That same culture can be found at Rolls-Royce Motor Cars today.

As a result, the Phantom is an engineering-led design, a motor car guided by the philosophy laid down by Sir Henry Royce almost a century ago but which, at the same time, satisfies modern needs.

Driveline

At its heart lies a remarkable driveline assembly – a naturally aspirated 60 degree V12, purpose designed for the Rolls-Royce Phantom. It is mated to a six-speed automatic transmission from ZF.

The engine’s capacity of 6.75-litres will be familiar to Rolls-Royce owners – from 1970 onwards, the long serving V8 in the Silver Shadow displaced 6.75 litres – but the levels of power and torque will be quite unlike anything they have experienced before.

In line with the expectations of a Rolls-Royce driver, great emphasis has been placed on providing high levels of torque at low engine speeds – the frantic on/off power delivery of a turbocharged engine is deemed quite unsuitable and out of character.

As a result the torque curve of the Phantom is predominately flat. At 1,000 rpm it is already producing a remarkable 560 Nm (413 lb ft) – 75 per cent of its peak figure of 720 Nm (531 lb ft) reached at 3,500 rpm. From 1,000 to 3,000 rpm, typical city driving speeds, these huge reserves of torque mean that every time the driver presses the throttle, the car picks up smoothly and without hesitation. The power unit is rated at 453 bhp (338 kW, 460 PS DIN) peak power at 5,350 rpm.

To optimise ride comfort the decision was taken to use tyres with tall and flexible side walls. For this reason top speed has been governed to 149 mph (240 km/h) with summer tyres and 130 mph (208 km/h) when all-season tyres are fitted. It takes just 5.7 seconds to reach 60 mph from standstill (5.9 seconds, 0-100 km/h).

The ‘shift-by-wire’ gearbox, too, has been tuned to match the characteristics of the engine. Electronic control means that in normal use the Phantom starts off in second gear with early up-shifts and late down-shifts.

But by engaging the kickdown switch, which is integrated into the throttle pedal assembly, at rest the car will set off in first and the full performance of the engine will be released. Similarly, engaging kickdown on the move allows later up shifts and more immediate response. The gearbox incorporates a low mode, suitable for steep mountain descents.

Mounted well ahead of the passenger compartment for optimum sound insulation – a property also helped by the double bulkhead design – the engine itself is one of the most advanced in the world.

Remarkably compact, the all-aluminium unit has four valves per cylinder, 48 in all, twin overhead camshafts per cylinder bank, four in all, and a long intake manifold for optimum low end torque. It features direct fuel injection, fully variable valve lift control and variable valve timing.

Direct fuel injection has been used to boost power and torque. By injecting an exact amount of fuel directly into each of the 12 combustion chambers rather than into the intake manifold, greater thermal efficiency is achieved allowing a higher compression ratio to be used. Sensors monitor the combustion curve in each cylinder, ensuring exact management of the combustion process with no pre-ignition of the fuel which would lead to engine knocking.

To achieve a similar increase in power and torque without direct fuel injection would have meant a larger engine or turbocharging, neither solution being considered appropriate to the Phantom.

Other technically advanced features of the engine include variable valve timing and sophisticated variable valve lift technology. The latter highly efficient system allows the inlet valves to regulate the amount of air entering the cylinders thus overcoming the inherent inefficiencies of the throttle butterfly, a component that has been an integral part of the internal combustion engine since the beginning. The result is improved fuel consumption at low and steady speeds as well as instant throttle reaction and enhanced smoothness no matter what the engine speed.

Considering the size and performance potential of the Phantom, fuel economy is exceptional: over the EU extra urban cycle the Phantom returns 25.7 mpg (11.0 ltr/100 kms) with a combined figure of 17.8 mpg (15.9 ltr/100 kms). The fuel tank has a capacity of 22 imperial gallons (100 litres).

Body structure

In the way that the monocoque-bodied Silver Shadow ushered Rolls-Royce into a new era almost 40 years ago, so the Phantom does the same today. Even though it is physically bigger and more extensively equipped than any Rolls-Royce saloon before it, the Phantom is no heavier yet structurally more rigid: the entire body-in-white weighs just 550 kg.

Torsional stiffness at 40,500 Nm/degree means body rigidity exceeds that of conventional unibody designs by far. It is estimated that the Phantom’s structure is twice as stiff as an average steel-bodied saloon: a remarkable figure given the size of the motor car.

These achievements have been possible thanks to the adoption of a sophisticated aluminium space frame – the largest in the automotive industry – which is then ‘dressed’ with panels mostly made from light weight aluminium or composite materials: only the boot lid is of steel.

Its use also means the Phantom is the only vehicle in its class to be built on a unique platform rather than one shared with another model. The space frame concept was identified early on in the project as the best way forward: indeed, the proposed overall package dimensions of the Phantom meant that the only way to achieve the required rigidity while keeping within set weight targets was by using an aluminium space frame.

Comprising more than 200 extruded profiles and more than 300 sheet metal parts, the space frame arrives at the Rolls-Royce Goodwood facility pre-assembled. It is hand-built by skilled specialists at the Dingolfing plant in Germany, which is the BMW Group’s competence centre for aluminium space frame technology. It is the only facility in the world capable of meeting the exacting standards set by Rolls-Royce.

Once completed, the structure – which includes 150 metres of MIG welds in more than 2,000 separate locations – is placed into a machining centre where critical fixing locations are optimised ensuring door, engine and suspension mounting points are accurate to within +/- 0.5 mm.

The implementation of the coach door design depends on such accuracy. The front and rear doors open independently, and at their closest point are just 2.7 mm apart.

As the space frame is fully structural, it means the outer panels are simply fastened to the frame itself. The bonnet and rear wings are aluminium, while the aluminium radiator grille, in common with other exterior brightwork, has a Sterling finish.

The doors feature an aluminium skin bonded over aluminium pressure die-castings and sheet metal parts. The front wings are sheet moulded composites (SMC). As well as offering greater resistance to minor traffic scrapes the material permits transmission of electro-magnetic waves and thus is where the antenna for the satellite navigation system is housed. The boot lid is steel, while the instrument panel (IP) carrier is a lightweight magnesium alloy casting – the first one-piece full depth and full width carrier of its type.

Cast in Europe’s largest tool of its kind, the IP carrier weighs just 7.6 kg yet provides a robust mounting for ductwork, heating and ventilation and safety system sub-assemblies to minimise vibrations.

The vehicle package concept brings with it other bonus features and allows the use of coach doors as well as a double floor, providing an area for essential services without intruding into passenger space. In addition, the extra rigidity provides the highest levels of comfort and quietness as well as exceptional passive safety attributes. The architecture of the Rolls-Royce Phantom’s rear compartment, and in particular the adoption of independent coach doors, takes passenger safety to a new level.

Before coach doors could be adopted, however, legislation had to be met: rules are in place to prevent the possible opening of the rear door into the path of travel when the car is moving. To achieve compliance, Rolls-Royce had to develop an entirely new electronic safety system. The coach door latch has its own electronic control unit which enables communication between the lock and sensors installed in the door. In addition, an electrically actuated safety lock has been installed in the rear interior door handle.

Above 2.5 mph (4 km/h) the coach door cannot be opened from inside the car, while with an open or partially latched door the car can only accelerate up to an uncritical speed before it is brought to a halt.

Both front and rear doors have a continuous door stop thus remaining open at any desired angle. Automatic soft closing, activated by a sensor in the door lock, when the door reaches a catch point approximately 0.2 ins (6 mm) away from the lock, uses a motor and gear unit to power a rotary latch to close the door completely. Automatic soft closing also operates on the boot lid.

The coach doors also have the benefit of closing assistance from any angle – a switch in the C-post allows rear passengers to close the door electrically without having to lean out of the car. Made possible by the package concept, the double floor offers two distinct benefits: it allows virtually flat flooring in the rear compartment and also permits service functions to be installed unobtrusively out of the way.

The level of the floor, itself a consequence of the preferred driving position, and the inclination of the rearmost end of the propshaft means it has been possible to reduce the intrusion of the transmission tunnel into the passenger compartment – just 3 ins (81 mm) remains above floor level. Passengers step directly onto a flat floor rather than over a sill into a footwell

The space between the floor panel and vehicle underside is filled with the vehicle ‘plumbing’ – mainly wiring harnesses and air ducts. It is also home to a pair of bass loudspeakers which are mounted under the front seats and whose performance is enhanced by two under-floor 16-litre acoustic resonating chambers. The result helps create one of the finest sound systems fitted to any car.

Chassis

The long wheelbase and rigid body structure help guarantee superior primary ride comfort, but the Phantom has also been designed to appeal to the demands of the driver as much as the passengers.

A subframe-mounted, all-new front suspension layout is based on the double wishbone principle, and features a tension link and lower control arm with a high mounted wishbone. The wishbone has a real pivot while the tension link and lower control arm have a virtual pivot enabling a small positive scrub radius to minimise steering forces.

The subframe is fabricated from steel tube, diagonally stiffened and rigidly mounted to the body at six points. Rack and pinion steering with speed sensitive variable rate assistance is mounted to the subframe, forward of the axle.

Oriented towards ride comfort and low transmission of noise, the front suspension also ensures neutral handling and stable behaviour under braking. Exemplary straight line running is matched by balanced steering loads while a hydromount in the tension link damps out wheel vibration which could otherwise be felt through the steering wheel.

At the rear, multi-link suspension with an integral control arm fulfils the demands for comfort and stability as well as providing the good anti-lift and anti-dive characteristics expected from a Rolls-Royce.

Also mounted on a subframe – aluminium in this case – the rear suspension controls the wheels via four links and features passive rear steer. The suspension arms are aluminium with the lower cast swing arm sitting parallel to the road where it has an aerodynamic effect in smoothing the flow of air from the back of the car.

The subframe is located by four large bushes, which isolate chassis-borne driveline noise and vibration from the structure, and forms the mount for the rear anti-roll bar, which is attached via roller bearings.

The rear differential is suspended in rubber bushes at its front and rear, the rearmost bush having a variable rate characteristic to provide different vibration responses vertically and horizontally.

Air springs on all four wheels help provide the cosseting ride expected from a Rolls-Royce. Automatic level control provides a constant ride height no matter what the payload, as well as uneven load compensation side to side, levelling the attitude of the car if only one of the rear seats is occupied, for example.

The system also allows the driver to raise the ride height by 1 inch (25 mm) to provide extra clearance for ramps. If the driver forgets to reset the ride height, the system reverts automatically once a speed of 40 mph (60 km/h) is reached.

Continuous control for the electronic dampers gives minimum damping forces when the car is running straight on smooth surfaces, but higher forces are applied over uneven surfaces or when cornering. The system monitors both the way the car is being driven and the road conditions a 100 times a second, then adapts the damping forces automatically. The system’s reactions are so fast that at 60 mph the dampers optimise their settings every 12 inches.

An integral part of the chassis is the adoption of the Michelin developed PAX tyre system – the Phantom is the first car in the world to feature the run flat system as standard.

Special beading ensures the tyre will not come off the rim even if there is a sudden loss of pressure. By incorporating a solid composite band within the tyre, control can be maintained as the tyre never fully collapses.

As well as obvious safety-at-speed considerations, the major benefit of PAX is that the Phantom will never have to be stopped in an exposed or dangerous position if a flat tyre occurs – it can simply be driven home or to another safe place to await a replacement. A spare wheel is not carried.

The run-flat capability is at least 100 miles at 50 mph when the car is fully loaded. Because a loss of air might not otherwise be detected by the driver, the system incorporates a tyre pressure alert on the dashboard.

The wheels and tyres themselves are not only unique to the Phantom but, with a diameter of 790 mm or 31 ins, are also the largest to be found on a current production passenger car. The tyres themselves have a high aspect ratio chosen for the optimum ride comfort.

Massive 374 mm (14.7 ins) ventilated brake discs are fitted at the front with 370 mm (14.5 ins) ventilated discs at the rear. The braking system incorporates two-piston alloy callipers at the front and single-piston callipers at the rear, as well as the latest generation four-channel anti-lock system. An electromechanical parking brake is fitted, which is autom atically applied when the gearbox is moved to Park.

As well as electronic damping control and anti-lock brakes, the Phantom benefits from a raft of modern electronic chassis and stability control systems. The anti-lock brakes are supplemented by emergency brake assistance which ensures maximum braking force is applied immediately in an emergency.

Using sensors measuring engine, road and wheel speeds as well as vehicle yaw, dynamic stability control uses the anti-lock brakes and engine management systems to prevent wheel spin and reduce the possibility of loss of control, while cornering brake control regulates the anti-lock brakes to ensure a chosen course is maintained when braking in a corner.

Safety and peace of mind

The Rolls-Royce Phantom has passed all current and anticipated crash test requirements with flying colours. The aluminium space frame gives significant benefits in occupant safety. Front impact loads are progressively absorbed by crumple zones and directed into Y-shaped chassis members and the main understructure. Side impact intrusion is minimised by the double floor, strong side sills and impact beams within each door.

On-board passive restraint systems include three point seat belts on all five seating positions, belt pre-tensioners and belt force limiters on both front and the outer rear seats and active head restraints in the front.

Intelligent Safety Integration System (ISIS) uses a decentralised optical network of sensors to permit intelligent triggering of the airbags. Dual stage front bags are complemented by door mounted side airbags in the front and window airbags running the length of the interior. No side airbags are needed for the rear passengers who sit inside the body structure rather than beside the rear door.

In the event of a collision of sufficient force to deploy a front airbag, the main electrical power supply is disconnected to avoid the risk of an under bonnet fire. As well as the advanced electronic chassis stability and braking controls, active safety features include faster reacting LED brake lights. LEDs also have the benefit of long service-free operation. The bi-xenon headlamps incorporate automatic self-levelling and power wash.

Electrical systems

A holistic approach to customer peace of mind, as typified by the PAX tyre system, can also be seen in the power supply, which features two liquid-cooled generators and two separate batteries, one for the main vehicle systems and the second for the starter.

Automatic charge management means that even if the vehicle’s entertainment systems are used over an extended period without the engine being run, there will still be sufficient power left in the starter battery to fire the engine. Once the V12 has been started, the generators will recharge both batteries to their full capacity.

If the vehicle is left in storage for an extended period, a charging socket located behind a side panel in the boot allows simple and secure connection for a maintenance trickle charge.

Transferring communication and entertainment data across the motor car’s systems is down to the use of advanced multimedia network electronics. Called MOST (for Media Oriented Systems Transport) it uses a ring system of optical fibres, transmitting control commands as well as audio, video and graphics signals.

By using optical data transmission a high degree of information – 22.5 Mbits/sec – can be transmitted at one time. MOST integrates information from the instrument panel, controller, telephone, navigation, voice recognition, television and audio systems.

CRAFTSMANSHIP

A Rolls-Royce motor car never has, and never will be, mass produced. More than 260 man hours go into each Rolls-Royce Phantom with many of the traditional features – such as the coach lines – still completed by hand.

The Phantom is, however, a 21st century motor car and the finest craftsmanship is augmented by advanced technical solutions used in automobile manufacture: the result is a marriage of traditional skills and modern machinery, of human endeavour and technological achievement.

The complex aluminium space frame, for example, is produced at the world’s most advanced facility of its type using measuring equipment accurate to +/- 0.1 mm. A complex material control system links suppliers and logistics enabling the management of all material movement within the Goodwood plant while the wood and leather workshops there house the most up-to-date milling machinery and laser measuring equipment.

But there is no substitute for human involvement. Ensuring the correct detail in the preparation of the up-to-60 separate wooden interior elements is a painstaking and highly skilled operation that owes as much to craftsmanship as it does to the latest technology. A five-axis CNC milling machine might give the dimensional accuracy required for the interior trim, but cannot ensure the veneer grains and patterns are aesthetically matched.

Similarly, using a laser to guide the hide cutting machinery or computer-controlled sewing machines to stitch the upholstery might be far more accurate than conventional methods, but neither can detect defects in the leather.

Only the trained human eye and the sensitivity of human finger tips can ensure the highest quality hides and finest veneers are used in the Rolls-Royce Phantom.

Hand crafting also allows much greater scope to satisfy individual customer demands. Such is the choice of colours, textures, veneers and equipment that it is highly unlikely that two absolutely identical Rolls-Royce Phantoms will ever be produced, unless deliberately commissioned to be the same, of course.

The Rolls-Royce Bespoke programme takes this theme of individuality even further, with skilled craftsmen capable of creating personalised interior features such as cocktail cabinets or ladies’ make-up compartments. While there are 18 exterior colours leading to 68 basic colour combinations, the Bespoke programme effectively allows an almost infinite colour choice.

When recruiting for Goodwood, Rolls-Royce appreciated there was no substitute for experience, expertise and skill. Such was the enthusiasm for the project that there was no shortage of skilled and experienced applicants: there were 15 candidates for every position advertised locally, in an area with no unemployment problem.

While many of the specialist craftsmen were recruited from within the UK motor industry – perhaps the world leader when it comes to working with wood and leather car interiors – others came from the non-automotive world and were involved with the manufacture of yachts, musical instruments and furniture. All are industries that demand the highest levels of quality and craftsmanship.

EQUIPMENT AND OPTIONS

A Rolls-Royce Phantom is one of the world’s most comprehensively equipped cars with features that complement the relaxed control of the driving experience and the technologically advanced nature of the car itself

This is perfectly encapsulated in the unique sound system developed for Rolls-Royce by Lexicon, a division of renowned audio specialists Harman International: 80 per cent of all music companies world-wide use Lexicon processing equipment for mixing and mastering recordings.

The audio philosophy behind the Logic7 system is to create acoustic realism and tonal accuracy in the notoriously difficult automotive environment. Surround sound provides an aural experience in a domestic environment, but in the confines of a car, each passenger is restricted to sitting near to just one multi-channel signal and so cannot experience the full effect.

To overcome this limitation, Logic7 includes an algorithm specially created for the car which recreates the original soundstage independently of the reproduction environment. Logic7 can produce a 7.1 channel surround output from any source, without the need for special encoding, recreating a full musical balance inherent of the original master recording. By enlarging the ‘sweet spot’, Logic7 has the ability to ‘place’ sound sources and increase the perceived depth of the auditorium.

Using a 7.1 channel playback matrix, the sound processing equipment extracts surround sound from all dual or multi-channel audio formats. Perceived volume is maintained across the entire road speed range.

Standard equipment includes a high-end tuner and an in-dash single CD player which are augmented by a six disc changer mounted in the lower glove compartment.

The system uses no fewer than nine amplifiers with a total maximum output of 420 watts powering 15 Metal Matrix (MMX) speaker tranducers. There are six 25 mm tweeters (one in each door and two in the hat shelf), seven conical 100 mm mid-range speakers (one in each door, two in the hat shelf and a centre speaker on top of the instrument panel) plus two large 217 mm central bass speakers mounted under the front seats, each with its own 16-litre under-floor resonating chamber. Each sub-woofer employs a double-neo, long throw motor structure for greater efficiency and dynamic control at all volumes.

Sophisticated satellite navigation is matched by a fully integrated telecommunications system and supplemented by voice recognition to make control as instinctive and easy to use as possible.

The 6.5 inch full colour monitor for the satellite navigation also doubles as the screen for the on-board television in markets where permitted. It is discreetly stowed away behind the classically styled central analogue clock on the dashboard when not in use. Once activated, the veneered panel holding the clock swivels to reveal the monitor.

Fine control for the navigation, communication, entertainment and vehicle settings is achieved via a fold-away controller located in the centre console. Intuitive major controls for the entertainment and air conditioning systems remain on the dashboard itself so it is possible to operate and enjoy the car without needing to use the controller and monitor at all.

Although the telephone equipment varies depending on the market for where the car is destined, the system incorporates hands-free operation controlled from the steering wheel, with a phone keypad located in a drawer within the dashboard.

Depending on the motor car’s ultimate destination, the system can be used either hands-free or via a separate cordless handset in GSM-equipped cars or, in other markets, via a Motorola V60i cellular phone which can be placed into a docking station in the centre console.

The television tuner uses an antenna system integrated into the rear window to receive terrestrial broadcasts. For safety reasons, it can only be used when the car is stationary.

Other standard features to be found on the Rolls-Royce Phantom include hand-crafted folding picnic tables for the rear passengers, lambswool floor rugs, umbrellas stowed in each rear coach door and discreet drinks holders front and rear.

All the doors and the boot lid have automatic soft closing which ensures they are securely fastened without the need for them to be slammed shut. The coach doors also have a courtesy closing feature which allows a rear passenger seated in the rear to close the doors without having to stretch out to reach a handle.

Parking is made easier by the standard fitment of parking distance sensors at the front and rear while the door mirrors can be electrically folded from the driver’s seat. The exterior mirrors automatically dip at night to prevent the driver being dazzled, while the way ahead is lit by bi-xenon headlamps.

The interior of the Rolls-Royce Phantom has six temperature zone adjustment and individual fan controls for all four vehicle quadrants. Directional air distribution is supplied via no fewer than ten solid metal air vents, while in some markets the climate control system can also been operated remotely when the car is parked, enabling the interior to be cooled down or heated up prior to departure. The glove box is also air conditioned.

Climate comfort glass, which reduces heat build up by reducing infrared radiation penetrating the cabin, is used throughout with heating elements embedded not only in the rear window but also in the front side windows for efficient and silent demisting.

There are two final items of standard equipment that cannot be found on any other production car and show the attention to detail that characterises the design and development of the Rolls-Royce Phantom. The first concerns that long serving symbol of Rolls-Royce, the Spirit of Ecstasy, which can automatically retract out of harm’s way into the radiator grille when the car is parked or at the owner’s discretion.

The second concerns aesthetics. Synchronised wheel centres ensure that the interlinked RR badges on all four wheels are always in an upright position, just as you’d likely find on a motor car on display on a motor show stand or in a collection.

With a car so comprehensively equipped, the options list is relatively short. Aside from personal preferences on colours, veneers and two-tone treatments, there is the option of single or twin hand-painted coachlines if desired.

Perhaps the most significant option is the individual theatre configuration in the rear. As well as a rear centre console with storage compartments, controls for the power seat adjustment and audio system, the option also incorporates a dedicated DVD-based entertainment system.

Two adjustable monitors are housed in the backrests of the front seats with manually operated sliding covers concealing the screens when not in use. One of the few other listed options is the availability of foot rests in the rear compartment. These can either be stowed away to leave the floor flat, or reversed to provide the foot rest facility.

In truth, however, the options list is virtually as long as an owner’s imagination. Thanks to the Rolls-Royce Bespoke programme, individual requests ranging from cabinetry and marquetry to different interior and exterior design themes can often be accommodated.

2004 ROLLS-ROYCE PHANTOM

Technical Specifications

• Displacement 6.7 L
• Fuel System gasoline direct injection
• Drive Train rear wheel drive
• Front Suspension wishbone with air springs
• Rear Suspension multi-link with air springs
• Brakes ABS
• Driver Air Bag Yes
• Passenger Air Bag Yes

Dimensions

• Wheelbase 140.6 inches
• Length 229.7 inches
• Width 78.3 inches
• Height 64.3 inches
• Seat Capacity 5 seats
• Standard Features

AUDIO

• Fifteen speaker(s)
• Diversity antenna
• Harman/kardon RDS audio system with AM/FM radio, CD player, Disc Autochanger and six-disc remote changer
• Remote audio controls

BODYEXTERIOR

• Coefficient of drag: 0.38
• Chrome/bright trim around side windows

BRAKES

• Brake by wire
• Electronic hand brake
• Cornering brake control
• Four disc brakes including four ventilated discs
• Four-wheel ABS
• Electronic brake distribution
• Brake assist system

BUMPERS

• Part-painted front and rear bumpers

CONVENIENCE

• Cellular phone
• Remote control remote trunk/hatch release
• Electric trunk/hatch pull down
• Memorized adjustment on door mirror position and steering wheel position with six driver’s seat positions and six passenger seat positions
• Cruise control
• Front seats and rear seats cigar lighter
• Delayed/fade courtesy lights
• Front and rear reading lights
• Illuminated entry system
• Illuminated driver vanity mirror , illuminated passenger vanity mirror , vanity mirror with rear
• Parking distance sensors
• Automatic door closing
• Navigational systems : information type: full map and voice and knobs/touch buttons controls
• Display screen
• Voice activating system
• Telematics

ENGINE

• 6,749 cc 6.7 liters V 12 front engine with 92 mm bore, 84.6 mm stroke, 11 compression ratio, double overhead cam, variable valve timing/camshaft and four valves per cylinder
• Emission control level FED

FUEL

• Gasoline direct injection fuel system
• Premium unleaded fuel
• 26.4 gallon main premium unleaded fuel tank

INSTRUMENTATION

• Service interval indicator
• External temperature
• Low fuel level warning
• Clock
• Computer with average speed, average fuel consumption, instantaneous fuel consumption and range for remaining fuel
• Low tire pressure indicator

INTERIORTRIM

• Luxury trim wood & leather on doors and wood & leather on dashboard
• Floor covering: carpet in load area
• Floor mats

LIGHTS

• Complex surface lens Bi-Xenon headlights
• Headlight control with time delay switch-off and dusk sensor
• Door entry light

LOADSPACE

• Load restraint hooks

LOCKS

• Remote power locks
• Interior monitoring anti-theft protection

PERFORMANCE

• Power: 338 kW , 453 HP SAE @ 5,350 rpm; 531 ft lb , 720 Nm @ 3,500 rpm
• Fuel economy EPA highway (mpg): 24 and EPA city (mpg): 14
• Top speed 208 km/h / 130 mph (governed). Acceleration 0–60mph – 5.7s, 0–1/4 mile – 14.3s

SAFETY

• Front and rear roof airbag
• Driver front airbag with occupant sensors , passenger front airbag with occupant sensors and occupant switch off
• Front side airbag with occupant sensors
• Two height adjustable electric adjustable active head restraints on front seats , two height adjustable head restraints on rear seats
• 3-point reel front seat belts on driver seat and passenger seat with pre-tensioners
• 3-point reel rear seat belts on driver side with pre-tensioners , 3-point reel rear seat belts on passenger side with pre-tensioners , 3-point reel rear seat belts on center side

SEATS

• Seating: five seats
• Leather seat upholstery with additional leather
• Front seat center armrest
• Rear seat center armrest
• Bucket heated electrically adjustable driver and passenger seat with height adjustment, lumbar adjustment, six adjustments and tilt adjustment
• Three fixed bench front facing heated rear seats with zero adjustments

STEERING

• Leather covered electrically adjustable multi-function steering wheel with tilt adjustment and telescopic adjustment
• Vehicle speed proportional power steering

STORAGE

• Door pockets/bins for driver seat, passenger seat and rear seats
• Front seat back storage
• Front seats cup holders , rear seats cup holders
• Full dashboard console , full floor console with covered storage box , full overhead console

SUSPENSION

• Wishbone front suspension with stabilizer bar and air springs , multi-link rear suspension with stabilizer bar and air springs
• Automatic front and rear suspension levelling
• Responsive suspension

TRANSMISSION

• Rear-wheel drive
• Electronic traction control via ABS & engine management
• Automatic six-speed transmission with mode select, lock-up, electronic control and shift lever on column
• Stability control

VENTILATION

• Ventilation system with micro filter
• Passenger seat and rear seats secondary ventilation controls
• Air conditioning with climate control, rear control for climate control and rear outlet

VERSION

• Four-door sedan body style
• Seating: five seats

VISIBILITY

• Automatic operation rear view mirror
• Driver power body color door mirrors with automatic , passenger power body color door mirrors
• Electric foldable mirrors
• Fixed rear window
• Heat reflective glass
• Windshield wipers
• High pressure headlight cleaners
• Front and rear power windows

WARRANTY

• Full car warranty: duration (months): 36 or distance (miles): unlimited
• Powertrain warranty: duration (months): 36 or distance (miles): unlimited
• Anticorrosion warranty: duration (months): 36 or distance (miles): unlimited
• Road-side assistance warranty: duration (months): 36 or distance (miles): unlimited

WEIGHTS

• Weights: curb weight (lbs) 5,577

WHEELS

• Front and rear run flat/punctureproof tires with 265 mm tire width
• Front and rear alloy wheels with partial wheel covers

Available Options

• Individual Seats
• Theatre Configuration
• Crossbanded Walnut Veneer
• Reversible Foot Rests
• Crossbanded Mahogany Veneer
• Single Coachline
• Twin Coachlines
• Walnut Burr Veneer
• Oak Burr Veneer
• Elm Cluster Veneer
• Black Tulip Veneer
