2009 Porsche 911 Carrera Coupe/Carrera S Coupe
The very first sports car to bear the Porsche name was introduced to the world in
June, 1948. Therefore, as the proud, independent Swabian automaker celebrates
sixty years of sports car excellence, it is only fitting that it has a new 911 Carrera—
for many the quintessential Porsche—to help mark the milestone.
This latest 911 Carrera Coupe and its higher-performance variant, the 911 Carrera S
Coupe, are the most sophisticated, potent and environmentally friendly 911 Carrera
models that Porsche has ever offered.
Despite their abundance of 21st century technologies, the 2009 911 Carrera Coupe
and Carrera S Coupe clearly trace their engineering and aesthetic roots to the
seminal Porsche. That original car evolved over fifteen years from the highly coveted
356 to the first 911 when, at the 1963 Frankfurt Motor Show, the ground-breaking
1964 911 Coupe debuted. As a testament to the genius of its design, after more
than forty years of development and six generations of engineering improvements,
the 911 Carreras still showcase a horizontally opposed, rear-mounted six-cylinder
engine carried in a distinctive and instantly recognizable body.
Highlights – New for 2009
Though the 2009 911 Carrera and Carrera S Coupes boast several important
refinements over the 2008 cars, the cars carry the same internal 997 designation as
their immediate predecessors. Chief among those refinements are new, more
powerful and fuel-efficient engines and the availability of Porsche’s seven-speed
double-clutch transmission, the PDK, in place of the optional Tiptronic S.
Other critical changes include larger, more potent brakes, a revised Porsche
Communication Management system with Bluetooth connectivity and available voice
commands, a fresh exterior with BI-XENON™ headlights, and light-emitting-diode rear lighting.
More Power from Less Fuel
Both the 911 Carrera Coupe and 911 Carrera S Coupe receive new engines for
2009. The engines both boast direct fuel injection, new two-piece crankcases and
revised intake and exhaust systems along with Porsche VarioCam Plus intake-valve
timing and lift system.
The results are felt and appreciated immediately by the Carrera Coupe’s driver.
Thanks to a 6.2 percent increase in horsepower, the 3.6-liter engine goes from 325
to 345 hp. Similarly, there’s a 5.5 percent gain in torque, from 273 to 288 lb.-ft.
Thanks to these improvements, a manual gearbox equipped 2009 911 Carrera
Coupe accelerates from 0 to 60 mph (96 km/h) in 4.7 seconds.
Even more impressive, when the car is equipped with the new PDK double-clutch
transmission in place of last year’s Tiptronic S, the 911 Carrera Coupe accelerates
from 0 to 60 mph in 4.5 seconds, more than a full half second quicker than its
predecessor.
The 3.8-liter engine in the more potent 911 Carrera S Coupe exhibits equally
awesome results, delighting its driver by sprinting to 60 mph in only 4.5 seconds
when equipped with a manual gearbox, and making that run in a mere 4.3 seconds
with the PDK. This hedonistic acceleration is compliments of the new 3.8-liter
engine’s gain of 30 hp, from 355 to 385 hp, or 8.5 percent, and a 5 percent
improvement in torque, from 295 lb.-ft. to 310.
Despite the substantial increases in horsepower and torque over the predecessor
models, neither the 2009 3.6-liter 911 Carrera Coupe nor the 3.8-liter 911 Carrera S
Coupe carries the stigma of a gas-guzzler penalty. Both engines earn their respective
cars federal Low-Emissions Vehicle, category two (LEV-II) certification.
Two Clutches, No Clutch Pedal
To take full advantage of the newly designed engines, Porsche is offering drivers a
transmission that delivers quicker acceleration than is possible with the standard
manual gearbox, while maximizing fuel efficiency. The new PDK (from the German
Porsche-Doppelkupplungsgetriebe), or Porsche double-clutch transmission, replaces
the Tiptronic S as the optional gearbox in both the 911 Carrera Coupe and 911
Carrera S Coupe.
Porsche was the first automaker to successfully use this transmission technology
back in the 1980s when the transmission was developed for the mighty Porsche 962
Group C racecar. The 911 Carrera Coupe or Carrera S Coupe driver can allow the
seven-speed PDK to shift up and down automatically, or he himself may opt to shift
via steering-wheel mounted paddles or the console-mounted lever, as with the Tiptronic S.
Essentially, the PDK is a conventional, seven-speed manual gearbox with two electrohydraulically
controlled, oil-bathed multiplate clutch packs. One clutch pack controls
the odd-numbered gears and Reverse; the other controls the even-numbered gears.
As one clutch pack engages the appropriate gear based on engine speed, load, and
vehicle speed, the other clutch simultaneously disengages the previous gear. The
results are seamless, instantaneous up- and downshifts, performed more quickly than
could be done by even a skilled test driver.
Gains through Loss
The newly revamped engines, 3.6-liter and 3.8-liter, each weigh about 6 kg, or 13.2
pounds, less than their predecessors. The new engines offer increased structural
rigidity for a quieter, more comfortable driving experience as well as improved
durability. The innovative PDK, despite offering more gear ratios than the Tiptronic S,
is about 10 kg, or 22 pounds, lighter than last year’s Tiptronic.
Through such careful weight management, Porsche engineers were able to keep the
2009 911 Carrera Coupe within 50 pounds (22 kg) of last year’s car, while the 911
Carrera S Coupe weighs only 12 pounds (5.5 kg) more than its predecessor, despite
the new cars’ added equipment and features.
Bigger, Grippier Brakes
Among the added features are even more potent brakes than before. Porsche
engineers firmly believe that a car’s deceleration ability must always out-perform its
ability to accelerate. Commensurate with the gains in engine performance, the 2009
911 Carrera Coupe and Carrera S Coupe receive added braking capability. All four
brake rotors on both cars are cross-drilled, inner vented and now 12.99 inches (330
mm) in diameter.
In addition, the monobloc, four-piston calipers are now the same as those used on the
911 Turbo. Critical refinements have been made to the airflow around the wheels to
increase brake cooling all around as well.
Finally, the 911 Carrera Coupe and Carrera S Coupe are equipped with the same
brake pre-filling feature previously used only on Porsche’s all-wheel-drive models. If
the driver lifts his foot suddenly from the gas pedal, the system assumes he is
preparing to brake hard. In that instance, hydraulic fluid automatically sets the caliper
pistons against the rotors, decreasing reaction time and braking distance.
Distinct yet Readily Familiar
As dramatic as are the changes in the Carrera Coupes’ drivetrains this year from last,
is how elegantly subtle the exterior differences are. Knowing full well that Porsche
owners prize the classic shape of the 911 Carrera Coupe, and that wanton and
radical redesigns simply for the sake of change undermine a marque’s value,
Porsche’s designers and engineers allowed only minor refinements to the appearance
of the model range for 2009.

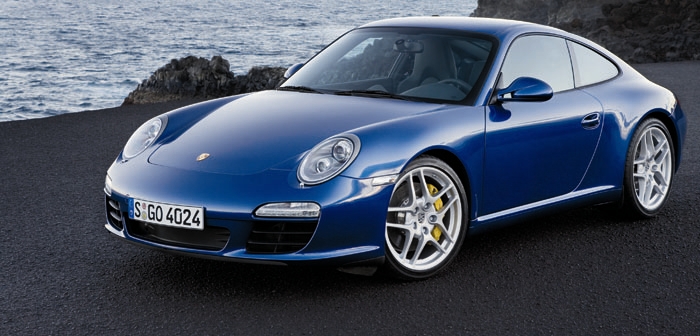

When viewed head on, the most notable differences are the new, horizontal covers
for the BI-XENON™ headlights and the L.E.D. daytime running lights, which extend
over the air inlets. Also noteworthy are air vents, which boast larger cooling
openings. The keen-eyed observer will also note the absence of a center radiator on
cars equipped with the PDK.
The side view reveals new, larger exterior mirrors with aerodynamic twin-arm mounts,
as well as new lightweight alloy wheels. The standard wheels on the 911 Carrera
Coupe are 18-inches in diameter; the 911 Carrera S Coupe comes with 19-inch
wheels. Each car’s wheels are of a distinct design.
In the rear, all the lighting elements, save the Reversing lamp, are now light-emitting
diodes, for improved luminosity, longer life and instantaneous response. Finally, in
the back, the 911 Carrera Coupe sports two single oval exhaust pipes while the 911
Carrera S Coupe shows dual round polished exhaust outlets.
Both cars slice the air efficiently thanks to their lean coefficient of drag of only 0.29.
More Sophisticated and Comfortable

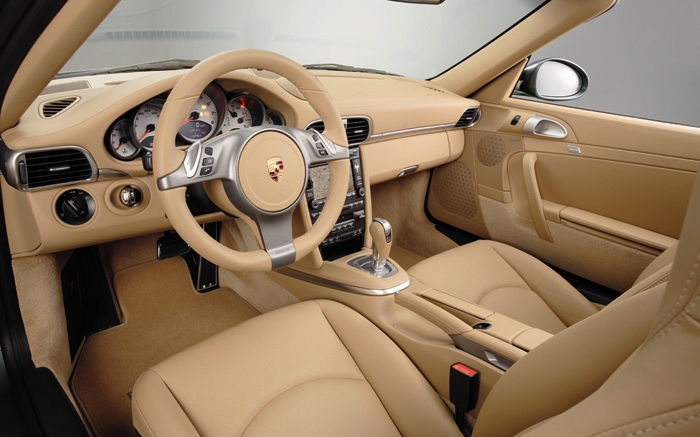

Interior refinements include a revamped center console highlighted by a new Porsche
Communication Management system (PCM) and the availability of ventilated front seats.
The latest iteration of the PCM boasts a 12 percent larger screen than before of 6.5
inches vs. 5.8. In addition, the PCM is now controlled via an easy-to-clean
touchscreen which incorporates a simpler keyboard. The optional navigation module
now has a 40 GB hard drive and may be operated with optional voice commands.
Other available features with the newest PCM include an internal GSM mobile phone
module with Bluetooth handsfree operation, as well the ability to connect with external
music sources such as iPods or USB memory sticks.
Interior comfort may be enhanced regardless of front seat selection thanks to
optional seat ventilating fans, available in conjunction with heated seats. These
circulate air through the seatback and cushion upholstery to expedite cooling,
heating, and/or drying the driver and passenger.
As before, the cabin is luxuriously appointed and offers its occupants the protection
of six airbags: dual frontal-impact airbags; as well as two seat-mounted, thoraxprotecting,
side-impact airbags; and two head-protecting, side-impact curtain, doormounted airbags.
Details
Less Fuel In, More Power Out
Though the 2009 911 Carrera Coupe and 911 Carrera S Coupe are each propelled
by Porsche’s familiar horizontally opposed, six-cylinder “boxer” engine, and despite
the fact that both engines carry the same displacement designation as their
immediate predecessors, both are substantially different than last year’s.
Most critically, both the 3.6-liter engine in the Carrera Coupe and the 3.8-liter in the
Carrera S Coupe are now equipped with direct fuel injection. In addition, the engines
are of a new, more robust construction than before, boasting a two-part crankcase
for increased structural rigidity. Further, both engines benefit from higher
compression ratios and improved breathing, compared with the previous versions.
The results are astounding and immediately rewarding to the driver. The 2009 911
Carrera Coupe develops 345 horsepower at 6500 rpm and 288 lb.-ft. of torque at
4400 rpm. That’s an output of 95.5 hp per liter and represents an increase of 20 hp
and 15 lb.-ft. At the same time, fuel consumption is reduced by 6.4 percent over last
year, when the cars are equipped with a manual gearbox. The all-new PDK
transmission further improves fuel economy over the previous Tiptronic S, by a total
of 12.5 percent.
This new engine propels the Carrera Coupe with a manual gearbox from a standing
start to 60 mph (96 km/h) in 4.7 seconds and achieves a top speed of 179 mph
(289 kmph) on the test track.
The blazingly quick Porsche double-clutch automatic transmission takes two-tenths of
a second off that run, making the 0 to 60 mph (96 km/h) sprint in 4.5 seconds. The
top speed is a track-proven 178 mph (287 kmph).
Yet, despite this exhilarating performance, the Carrera Coupe carries no gas-guzzler
penalty. In addition, this engine is so environmentally friendly that the car is certified
by the federal government as a Low Emissions Vehicle, category two (LEV-II).
In Porsche Parlance, “S” Means More
The 2009 911 Carrera S Coupe, like its predecessor model, is powered by a larger,
more potent version of the Porsche horizontally opposed six-cylinder than its non-S
sibling. As with the 3.6-liter version in the 911 Carrera, the 3.8-liter engine benefits
from less weight, a two-piece crankcase, improved intake and exhaust, and direct
fuel injection. The fruits of these refinements are 385 horsepower at 6500 rpm and
310 lb.-ft. of torque at 4400 rpm. This is an increase of 30 hp and 15 lb.-ft. of torque
while achieving a power output of 101.3 hp per liter, without the need for any form of
supercharging.
With a boost in potency, the 911 Carrera S Coupe with manual gearbox runs to 60
mph (96 km/h) in only 4.5 seconds, on its way to a track-proven top speed of 188
mph (302 kmph).
The PDK driving-shifting automatic transmission shaves two-tenths of a second off the
acceleration times of Porsche’s most skilled test drivers. The 0 to 60 mph (96 km/h)
run takes only 4.3 seconds. Track-proven top speed for the Carrera S Coupe with
PDK is 186 mph (300 kmph).
Despite its awesome performance the nearly 400-hp Carrera S Coupe carries no gasguzzler
stigma. And the added power and torque do nothing to diminish the engine’s
clean exhaust. Like the Carrera Coupe, the 911 Carrera S Coupe is certified as LEV-II.
It Starts With a Straight Shot
Both the 3.6-liter and 3.8-liter horizontally opposed, six-cylinder engines in the 911
Carrera Coupe and 911 Carrera S Coupe are substantially revamped from the
similarly designated engines in last year’s model range.
The engines still consist of a light alloy crankcase and cylinder heads, and have four
valves per cylinder actuated by dual overhead camshafts. Now, for the first time in a
Porsche sports car, the engines boast a direct fuel injection system (DFI), which
works in concert with Porsche’s VarioCam Plus valve lift and timing control.
By injecting fuel directly into the combustion chamber rather than in the intake port,
DFI delivers myriad benefits. Since the fuel charge arrives closer to combustion than
with port injection, throttle response is instantaneous, and the 911 Carrera driver
feels a razor-like reaction to even the slightest movements of his right foot, whether
accelerating or lifting from the throttle.
To take fullest advantage of the DFI’s attributes, Porsche’s engineers designed the
combustion chamber and piston crown to maximize efficiency. Those refinements
allowed the engineers to design both the 3.6-liter and 3.8-liter engines with a
compression ratio of 12.5:1. This is up from 11.3:1 on the previous 3.6-liter and
11.8:1 of the former 3.8-liter. To ensure maximum efficiency and durability, the DFI
injectors have been designed and manufactured to deal with working pressures of up
to 1740 psi (120 bar) in the combustion chamber.
The fuel injector nozzle is between the two intake valves, spraying fuel directly into
the incoming fresh air charge from both valves. This is clearly far more efficient than
port injection which naturally leaves some unburned gasoline on the intake walls and
valves. The incoming fuel charge further aids the combustion process by cooling the
incoming air as it vaporizes, allowing more air to be drawn into the engine for a
denser charge and permitting the higher compression ratios. Finally, the fuel and air
are mixed more evenly and thoroughly when the fuel is injected directly into the air
inside the combustion chamber.
DFI also reduces emissions since the engineers were able to reshape the piston
crown to completely direct the fuel charge at the spark plug for thorough
combustion. During start-up, the engine benefits from high-pressure stratification of
the injected fuel. Then to quickly light off the catalysts, the DFI heats the exhaust
rapidly through multiple injection. To increase the temperature of the exhaust gas to
an even higher level, ignition timing is very late, further minimizing start-up emissions.
The system also employs multiple fuel injection during periods of combined high
loads and engine speeds up to about 3500 rpm—as when the driver floors the
throttle at slower speeds. During the multiple injection phases, the injectors split the
fuel charge into several successive bursts during the piston’s intake stroke.
Otherwise, the fuel is injected in one phase during each intake stroke.
As with their predecessors, the new 3.6-liter and 3.8-liter engines are equipped with
Porsche’s VarioCam Plus intake valve timing and lift system. Porsche’s engineers
have refined the elements and operation of the VarioCam Plus to optimize the
benefits of the DFI. The engineers re-aligned the profiles of both the intake and the
exhaust camshafts. The diameter of the intake tappets has been reduced from 33 to
29.5 mm (1.30 – 1.15 in.) and the exhaust valve tappets are down from 33 to 24.2
mm (1.30 – 0.94 in.). This reduction in mass allowed the engineers to safely raise the
engines’ redlines, from the previous 7300 rpm to 7500 rpm.
Two, Two Camshafts in One
As with all Porsche engines, VarioCam Plus in the 911 Carrera and Carrera S Coupes
adjusts intake valve lift and timing based on engine speed and load, and is under the
umbrella of the engine’s main electronic controller. Though the VarioCam Plus
operates far too quickly for the driver to be aware of it, the results are obvious. The
effect is that of an engine with two different intake camshaft profiles, one set up for
smooth and efficient around-town driving, the other a high-performance camshaft
designed for high-speed. Each of these two designs usually precludes the other and
most cars have a compromise of the two. Porsche’s VarioCam Plus removes the
compromise and the driver benefits from the best of both driving worlds.
Valve timing is controlled via a vane cell adjuster which continuously varies the two
intake camshafts positions relative to crankshaft. Valve lift is varied by a system
utilizing two cup tappets, one resting in the other. These tappets are actuated by
separate cam lobes of differing size. The engine control module directs oil pressure
to the appropriate tappet based on engine speed and load parameters. When nonpressurized,
the tappet moves under the camshaft lobe, but exerts no pressure on
the valve, in effect free wheeling.
More Efficiency through Better Breathing
The Porsche VarioCam Plus in the new engines has also been refined to take full
advantage of their redesigned, freer-flowing intake manifolds. The new intakes boast
a dual chamber design, in place of last year’s single chamber unit. The intakes have
two openings and separate intake funnels in the rear engine cover. These funnels
feed air to separate, round air filters. Besides greatly reducing flow resistance, the
dual filters provide a side benefit to owners: The replacement interval has been
increased from 37,000 to 56,000 miles.
As with the previous model, the upper section of the 3.8-liter engine’s filter features
actively switchable resonance volume. Additional volume is activated as a function of
engine speed, with temperature compensation being provided by a vacuum-controlled
butterfly, improving the engine’s acoustics.
The new intake manifolds themselves are made of a special synthetic material. They
incorporate a resonance pipe integral with the air-distribution pipe between left and
right intake runners, as well as additional resonance chambers. The larger engine in
the 911 Carrera S Coupe also has a switchable resonance butterfly, which adjusts
the oscillation of the intake charge to maximize torque at lower engine speeds. At full
load between 2600 and 5100 rpm, the resonance butterfly is closed; at lower and
higher speeds it is open.
The exhaust manifolds are also new. The lengths of the individual exhaust runners
have been equalized and optimized for smoothness and efficiency. The catalytic
converters are directly behind the right- and left-hand manifolds, rather than being
mounted crosswise behind the engine. Thanks to the engines’ DFI, there is no need to
inject secondary air into the exhaust stream to complete combustion, as in the past.
The exhaust systems of both engines are the same, save their distinctive outlets. As
in the past, the 3.6-liter powered 911 Carrera Coupe has two individual oval tailpipes
while the 911 Carrera S Coupe is distinguished by its dual round brushed stainlesssteel tailpipes.
Stronger, and Lighter, Too
While gaining sophistication, technology and power, the new horizontally opposed,
six-cylinder engines in the 2009 911 Carrera and Carrera S Coupes lost weight.
Both engines are 13.2 pounds (6 kg) lighter than their predecessors. Among the
critical changes to the basic engine design is a new two-piece crankcase instead of
the previous four-piece unit. The new crankcase has integral crankshaft bearings,
compared with the former separate crankshaft bearing housing. In addition to
reducing complexity, Porsche’s engineers enhanced the thermal and mechanical
stability of the engine. They also went from an open-deck to closed-deck layout. With
the closed-deck configuration, the tops of the cylinder liners are now connected with
the housing by a top plate which incorporates the coolant sleeves. This design
increases stability and durability while helping reduce oil consumption and friction.
Further weight and complexity are saved through the elimination of the intermediate
shaft needed to drive the timing chains on the old engines. Thanks to new, highly
resistant timing chains, that shaft is not needed. Porsche’s engineers also developed
new one-piece cylinder heads which incorporate the camshaft bearings and the guide
cylinders for the hydraulic cup tappets.
Leaving no stone unturned in their quest for maximum efficiency, Porsche’s engine
designers developed a new engine lubricating oil system that ensures thorough
lubrication regardless of driving conditions while minimizing operating losses for
improved fuel economy.
Given the 911 Carrera Coupe and Carrera S Coupe are designed to be driven quickly
and enthusiastically, every element of the cars must withstand extended periods of
high levels of lateral acceleration. Drawing from decades of racing success,
Porsche’s engineers ensured the cars’ engines would always be adequately
lubricated, even under the most extreme driving conditions. The new engines use
Porsche’s proven dry sump system, with four intake and one electronically controlled,
pressure oil pump operating on demand. The engine’s electronic management
system adjusts the supply of oil by means of a hydraulically activated, axially moved
gear in the pressure pump. As the gear is moved, its mesh section width is changed,
varying the volume of oil moved. The pump runs on a chain-driven shaft spun by the
crankshaft. The result is optimum lubrication with minimal energy consumption.
In addition, two suction pumps extract oil from each of the two cylinder heads and
feed it to the oil sump where a new baffle plate largely separates the crankcase and
the sump, reducing splash losses in the crankcase and minimizing oil foaming in the sump.
The integrated dry-sump system is so precise at monitoring oil levels that the engines
have no engine oil dipstick. Instead, an electronic monitor measures the oil level and
displays the result on the instrument cluster.
Keeping It Cool
Engine cooling for both the 3.6- and 3.8-liter engines has also been improved. The
coolant passages have been upgraded over the previous engines and the engineers
increased cooling around the exhaust valve seat rings, expediting heat dissipation in
the cylinder heads. The engines also boast a new externally mounted coolant pump.
The new pump flows approximately 20 percent more coolant than the old. These
modifications along with the optimized flow of cooling air at the front of the car
allowed the designers and engineers to eliminate the center radiator found on the
previous models.
Different Size That’s the Same
Finally, the various internal refinements to both the 3.6-liter and 3.8-liter engines
result in slight changes to their displacements.
The 3.6-liter engine in the 2009 Carrera Coupe now has a 3.21 inch (81.5 mm)
stroke, up by 1.3 mm over last year. Bore has been increased by 1.04 mm, and is
now 3.82 inches (97 mm). The 911 Carrera S Coupe’s 3.8-liter engine has a 3.05
inch (77.5 mm) stroke, down from the predecessor’s 3.226 inches (82.8 mm). Bore
has been increased by 3 mm to 4.02 inches (102 mm).
The results of these changes are that the 3.6-liter has an actual displacement of
3614 cc, or 18 cc more than before. The 3.8-liter actually sheds 24 cc and is now
exactly 3800 cc.
Getting the Power Out
As before, both the 911 Carrera Coupe and Carrera S Coupe come equipped with a
six-speed manual gearbox as standard. Commensurate with the increase in power
over last year’s models, the transmissions in both cars have been strengthened and refined.
Steel rather than brass synchronizing rings as well as thick shafts and wide gears
provide strength, yet the transmission’s weight is kept down by using extra-thin
aluminum in the oil chamber walls. The transmission’s internal architecture minimizes
splash effect and flow losses, increasing the efficiency.
The gearbox uses wear-resistant carbon-coated synchromesh rings on first, second
and third gears. In addition, first and second boast triple synchronizers. Third gear
has double synchronizer rings and fourth through sixth gears uses a single ring.
Taking advantage of the engines’ increased output, the engineers altered Third gear,
making it about 3 percent taller than before. This change improves around town fuel
economy with no impact on performance or derivability.
These internal details mean the driver can shift more quickly and smoothly, since less
force is needed and the linkage has shorter travel during gear changes.
In addition, the wear-compensating clutch which was formerly only found on the
Carrera S, is now standard on the 3.6-liter model. As the friction face of the clutch
wears, an adjustment ring in the pressure plate automatically compensates for the wear.
All 2009 911 Carrera models, regardless of transmission, also boast Start-Off
Assistant as standard. This feature allows the driver to get moving again smoothly
without rolling on a hill when starting from a stop. When the driver stops on an incline
and leaves the transmission in gear, the Start-Off Assistant maintains brake pressure
for about two seconds after the driver lifts his foot from the brake pedal. Then the
system incrementally reduces brake pressure. As soon as the driver accelerates,
brake pressure is fully released.
Multiple Clutches and Seven Speeds
For 2009, both the 911 Carrera and Carrera S Coupes can be equipped with the
innovative and blazingly fast Porsche PDK transmission. The seven-speed, driver911
shiftable automatic replaces the five-speed Tiptronic S as the optionally available transmission.
Though it was developed in the 1980s for the all-conquering Porsche 962 Group C
racecar, thanks to recent advances in electronic control technology, this is the first
time that the PDK is available in a street-faring sports car.
The new PDK (which comes from the German Porsche-Doppelkupplungsgetriebe or
Porsche double-clutch transmission), like the Tiptronic S, allows the driver to shift up
and down using either steering-wheel mounted paddles or the console-mounted lever.
Or, if he’d rather, the driver can simply leave the PDK in automatic mode and allow it
to operate totally on its own.
Two, Two, Two Gearboxes in One
Put extremely simply, the PDK is two manual gearboxes combined into one unit. At its
crux, the PDK has a sophisticated electronically controlled valve body overseeing the
operation of two separate multiplate wet-clutch packs, each with its own gearset. One
clutch activates first, third, fifth, seventh and reverse, the other acts on second,
fourth and sixth.
Only one of the clutch packs is engaged at any given moment. As one disengages,
the other simultaneously engages. Since each gear is preselected and already in
mesh when its clutch pack engages, the shift is completed instantly and without any
loss of power. Like the clutch packs, the gears’ shift forks are electro-hydraulically
operated. This all adds up to gearchanges that occur in milliseconds, faster—and
smoother even under full load—than can be made by even the most adept driver.
The PDK shifts gears up to 60 percent faster than an automatic transmission, with no
interruption in power flow. The new 911 Carrera Coupe and Carrera S Coupe with the
double-clutch transmission accelerate from 0 to 60 mph (96 km/h) eight tenths of a
second more quickly than their predecessors with Tiptronic S, while using up to 12.8
percent less gasoline.
Despite the fact that the new PDK double-clutch has two more gears than the
previous Tiptronic S, the new unit is compact and weighs 22 pounds (10 kg) less than
the Tiptronic S. The two clutch units are interconnected, and each clutch pack
consists of five oil-bathed friction discs. The two radial, multiple-plate packages
forming the double clutch unit are engaged and disengaged independently of one
another by the control valve. Porsche’s engineers opted to use the compact wet
clutches for their thermal resistance, service life and their superiority to a dry double
clutch in handling the significant torque of the new engines.
Follow the Numbers
In manual mode, under load, the PDK upshifts sequentially, alternating between odd
and even numbered gearsets. During downshifts, however, the PDK can skip gears,
even going from Seventh to Second. In downshifts within the same gearset,
intermediate gears in the other unit are engaged briefly. For example, if the PDK
downshifts from Sixth to Fourth, Fifth gear is activated temporarily as Fourth gear is
selected and the ECU synchronizes engine and transmission speeds.
Do It Yourself
Drivers can either leave the PDK in fully automatic mode, or they may up- or
downshift for themselves. The gearshifts with the PDK double-clutch transmission can
be made the same way they were with the previous Tiptronic S, via console-mounted
shift lever or steering wheel-mounted paddles. When the shift lever is placed in the
manual-shift mode—done by pressing the locking button on the lever handle—tipping
it forward upshifts, while moving it to the rear downshifts.
Porsche engineers developed a new standard steering wheel to complement the
PDK. The new wheel is a three-spoke design and is 14.6 inches (370 mm) in
diameter. The steering wheel features two ergonomic paddles. Pressing either paddle
from the front upshifts, pressing from behind downshifts. The PDK can also be fit with
either the optional sports steering wheel or the Porsche multifunction wheel. As a
further option, the steering wheels may be heated as well.
Wait, There’s Still More Performance Available
For those enthusiast drivers who want even more direct control of the PDK doubleclutch
transmission, Porsche’s engineers have configured the optional Sports Chrono
Package Plus to work with it.
Pressing the Sport or Sport Plus button on the center console allows the driver to
select his desired gear directly. The shift points are adjusted infinitely as a function of
the driver’s style and the button pressed. An added feature is an aggressive
downshifting program whenever the driver hits the gas pedal quickly, even without a kick-down shift.
The available Sport program provides enhanced driving of dynamics by preventing an
automatic upshift when the driver lifts off the throttle quickly, as when entering a turn.
The transmission won’t upshift in curves if the car’s lateral acceleration and road
speed inform the ECU that the driver is driving aggressively. Automatic and quick
downshifts under braking are based on the vehicle’s road speed and rate of
deceleration. Finally, the program alters the shift points to compensate for elevation
above sea level.
The driver always has the ability to shift gears directly, regardless of the PDK’s
program mode. While in the fully automatic mode, the manual gear selections made
via the steering-wheel paddles remain in effect for about eight seconds, depending on
the vehicle’s momentum and lateral acceleration.
Porsche’s Sports Chrono Package Plus incorporates the company’s Launch Control
and a special gearshift function for extremely dynamic driving. Launch Control
delivers optimum acceleration, regardless of conditions and is activated by pressing
the Sports Plus button in the center console. For race-like starts, the driver holds
down the brake pedal with his left foot while pressing the accelerator pedal with his
right, revving the engine to about 6500 rpm. He then releases the brake, and PDK
ensures minimal wheelspin with maximum torque.
The Sports Chrono Package Plus with PDK also offers a gearshift strategy for
extreme performance with shift points optimized for the track. Activated by the
Sports Plus button, the PDK switches to the fastest possible reaction and gearshift
times, twice as fast as on the Tiptronic S. When shifting up under full load, the engine
is revved up to maximum speed with a brief overboost of power. And to optimize
performance when downshifting, the transmission automatically applies extra gas in
between shifts.
Limiting Slip at the Rear Wheels
Both the 911 Carrera and Carrera S Coupes offer optional limited-slip differentials.
This feature is available with both manual gearbox and PDK double-clutch
transmission. The limited-slip is mechanical and provides 22 percent lock under
power and 27 percent in overrun. The limited-slip works in concert with the standard
Porsche Stability Management (PSM) to further improve traction on varied surfaces
and when driving enthusiastically, especially around curves.
Both Carrera Coupes have a final drive ratio of 3.44:1, with or without the optional
limited-slip differential.
Stopping What Goes Fast
Inherent in the Porsche philosophy is that every Porsche must have braking
power at least commensurate with its acceleration and top speed capabilities.
Therefore, all are equipped with cross-drilled, internally vented four-wheel disc
antilock brakes. And as the new 911 Carrera and Carrera S Coupes have more
power and speed than their immediate predecessors, they have more braking
ability as well.
All four rotors on both Carrera and Carrera S are now 12.99 inches (330 mm) in
diameter. While these are unchanged for the Carrera S, for the 2009 Carrera,
this represents an increase of almost half an inch, or 3.75 percent, for the front
brakes and 1.2 inches, or 10.4 percent, for the rear brakes, over last year. The
front rotors are 1.34 inches (34 mm) thick; the rears are 1.1 inches (28 mm) thick.
Both cars also have four- and monobloc piston fixed calipers clamping the rotors.
The Carrera Coupe has black calipers, the Carrera S red ones. These calipers
are borrowed from the 911 Turbo and are reinforced aluminum. Porsche’s
engineers increased caliper strength and stiffness by adding crossbars to the
piston-bearing side units.
Greater Stopping Power Available
Driver’s desiring even greater stopping performance than Porsche’s already wellrenowned
braking can specify Porsche Ceramic Composite Brakes (PCCB), which are
available as an option on both 911Carrera Coupes. Cars so equipped are instantly
recognizable by their yellow brake calipers.
Developed for the extreme use of motorsports, PCCB replaces the standard
metal brake rotors with 13.78 inch (350 mm) ceramic discs. Besides delivering
otherwise unobtainable levels of consistently superb braking performance under
repeated heavy use, the ceramic rotors weigh approximately 50 percent less
than the iron ones. PCCB reduces the car’s unsprung mass by 34.4 pounds (15.6kg).
Chillin’
To help ensure superb braking even during long periods of hard use, the 2009
Carrera Coupes have new, larger brake-air spoilers on the front suspension
control arms to improve cooling and active brake venting from the 911 Turbo,
with additional openings in the underbody. Cooling air is fed to the rear brakes via
an airflow duct as well as a newly developed brake air spoiler, which allows the
rear brakes to handle a greater share of the braking load than before. This
results in greater reliability and shorter stopping distances.
Fill ’em up
For 2009, the rear-wheel drive 911 Carrera and Carrera S Coupes receive
Porsche’s Brake System Pre-Filling and Brake Assistant found on the all-wheeldrive models.
Pre-filling the brake system shortens stopping distance and increases reaction
time in emergencies. If the driver suddenly releases the accelerator pedal, the
system assumes he is about to hit the brake pedal. In those instances, brake fluid
pressure is automatically and instantly built up, placing the brake pads lightly
against the rotors before he actually steps on the brake pedal.
Similarly, Brake Assistant shortens stopping distances in emergency by
increasing brake assist hydraulically, adding to the vacuum brake boost. If the
driver’s foot on the brake pedal moves faster and with more force than
predetermined levels, Brake Assistant automatically provides maximum braking force.
For those skilled enthusiast drivers who want to deactivate Brake Assistant, it
may be switched off along with the standard Porsche Stability Management by
hitting the “PSM Off” switch, or by hitting the Sports button on cars equipped with
the optional Sports Chrono Package Plus.
Reliable Vacuum Assist
As with the brake systems on many cars, the Carrera Coupe and Carrera S
Coupe have vacuum-assisted braking. However, unlike most, the Porsches do not
rely on intake-manifold vacuum for that assist. Carrera Coupe and Carrera S
Coupe have a mechanical vacuum pump driven by the right-hand cylinder bank’s
exhaust camshaft. The vacuum pump ensures a constant and reliable source of
braking assist, regardless of ambient air pressure or steady open-throttle driving.
No Heavy Spare
For 2009, the 911 Carrera Coupe rides on standard 18-inch light-alloy wheels of a
new, twin-blade, five-spoke design. The front wheels are 8 inches wide, the rears
are10.5 inches wide.
The Carrera S Coupe boasts 19-inch diameter light-alloy wheels. The wheels are a
new distinctive design, with five sets of parallel dual spokes. To reduce unsprung
weight and improve handling, the 19-inch wheels are made in flow-forming
technology, which delivers very thin but very strong walls. The front wheels are 8-
inches wide, like the Carrera Coupe; however, the rear wheels are 11 inches in width.
For 2009, ride, handling, fuel economy, and tire life of the 911 Carrera models are all
improved, compared with the predecessors, compliments of newly compounded
tires. The tires are all Z-rated radials, with the Carrera Coupe riding on 235/40-
aspect in front and 265/40 in the rear. Given its higher performance potential, the
Carrera S sits on 235/35 fronts and monstrous 295/30 rears.
The larger 19-inch wheels and tires of the Carrera S Coupe are optional on the
Carrera Coupe. Also available as options are the new 19-inch Turbo wheels.
To help reduce vehicle weight by 22 pounds (10 kg) and save space, the Carrera and
Carrera S Coupes carry no spare tire, jack, or tire-changing tools. Instead the cars
are equipped with a small electric air compressor and tire sealant, allowing the
emergency repair of a small puncture. This gives the driver the safe opportunity to
drive at speeds up to 50 mph (80 km/h) to have the tire properly repaired or
replaced.
Keeping Up the Pressure
To ensure optimum safety, fuel economy and performance, Porsche engineers
provide Carrera Coupe and Carrera S Coupe drivers with a safeguard against
driving on a damaged or an underinflated tire. Both cars come with Porsche’s
Tire Pressure Control system (TPC). This system uses sensors at each wheel to
constantly monitor inflation pressures. The system offers the driver two levels of
warning, should it detect a problem.
If any tire shows a pressure drop of more than 2.9 psi but less than 5.8 psi from
specifications, a text message in white lettering shows in the tachometer. This
warning appears for 10 seconds each time the car is started. If pressure drops
more than 5.8 psi, or if inflation pressure drops at a rate of 2.9 psi or more per
minute, the warning becomes more urgent and is displayed in red text. This
warning appears as soon as the respective values are exceeded, whether the
vehicle is stationary or moving.
The system has been given upgraded wheel sensors for 2009, which use a new
communication technology and larger batteries.
Now utilizing Tripper Logic, the sensors transmit their signals only whenever
requested to do so by the control unit, except in the event of a rapid drop in
pressure, which triggers a continuous signal. To efficiently receive signals from the
wheel transmitters, the new generation of TPC now uses a central receiver aerial
beneath the floor of the car, replacing the previously used aerials in each wheel arch.
The system can now continue monitoring tire pressures in the other wheels even if
some of the control units fail. With the new system, battery service life goes from
seven to ten years.
Sporty Handling=Accident Avoidance
Knowing full well that all vehicles are safest by avoiding an accident in the first
place, Porsche’s engineers understand that their cars’ awesome dynamic abilities
are as much of a safety feature as a performance attribute.
To ensure both dynamic safety and an exhilarating driving experience, Porsche’s
engineers have continued to refine and enhance their cars’ suspensions. Building
upon a wide stance, both the 911 Carrera and Carrera S Coupes sit on a large,
secure footprint. Both cars have a 58.6 inch (1486 mm) front track. In back, the
Carrera has a 60.4 inch (1534 mm) track. With its larger wheels and tires, the
Carrera S has a rear track of 59.7 inches (1516 mm). Porsche’s engineers then
specified a lightweight and technologically advanced suspension system and a low
center of gravity for optimum agility and driver confidence assuring stability.
The Carrera Coupe and Carrera S Coupe boast Porsche’s proven front
suspension. This consists of a McPherson design, optimized by Porsche; spring
strut axles with separately mounted longitudinal and track control arms; conical
stump springs with an inner damper; and twin-sleeve gas-pressurized dampers.
The dampers on the Carrera S feature active control, as they are an integral part
of that car’s standard Porsche Active Suspension Management (PASM).
In the rear, the Carrera and Carrera S Coupes have the maker’s five-arm, springstrut
suspension with longitudinal and track control arms. The rear coil springs
have co-axial, single-sleeve gas-pressure inner dampers. As in front, the rear
dampers of the Carrera S boast active control.
The standard suspension of the 911 Carrera Coupe for 2009 features an
additional front and rear stop springs. These springs have an outbound spring
motion on the wheels, enhancing ride comfort.
Better Living through PASM
As noted, the Carrera S Coupe comes standard with the most recent version of
Porsche Active Suspension Management (PASM). This system is optional on the
Carrera Coupe. For the 2009 911 Carrera models, PASM suspension has refined
springs and antiroll bars for even greater comfort. Porsche’s engineers were able
to accomplish this by fine-tuning the PASM control function, delivering a smoother
ride on bad roads in both the Normal and Sport modes with no degradation in handling.
This electronically controlled suspension allows the driver to select either a
Normal or Sport setting, depending on the driving situation and conditions.
Besides allowing the choice of choice setups, PASM also lowers the car’s ride
height by about 0.4 inch (10 mm).
At the core of PASM are continuously adjustable dampers, a front and rear
accelerometer, and a dedicated electronic control unit. The PASM controller receives
data about the vertical movements of the car’s body, as well as steering angle,
vehicle speed, brake pressure, and engine torque.
The control unit then alters oil flow within the dampers to constantly provide the
optimum firmness for the conditions and driver’s desire. The system’s active
dampers have a similar structure as standard shock absorbers but incorporate an
electronically controlled internal bypass valve that increases or reduces oil flow as needed.
More than merely a two-setting suspension, PASM automatically adjusts to the
driver’s style. If left in Normal mode, the PASM will gradually increase the
suspension’s firmness if the car is driven with greater enthusiasm, generating higher
dynamic forces.
Rapid and sudden steering movements indicate to the control unit an immediate need
to increase damper forces on both axles to reduce swaying or rocking.
By monitoring vertical motions of the body, the system can firm the dampers in
Normal mode as reaction to a rough road, minimizing rocking. However, in Sport
mode, the same motions alert the controller to reduce the damping forces to ensure
that the wheels remain in contact with the road and increase ride comfort.
When the driver steps on the brakes, PASM firms the dampers to reduce body dive
and, as the braking sequence continues, adjusts to softer damping with different
forces front and rear, to ensure solid tire-to-surface contact even on broken
pavement or rough roads, and to minimize stopping distance.
PASM also controls body squat during full-throttle acceleration. As the driver may
briefly lift off from the throttle during gear shifts, PASM instantly adjusts firmness at
front and rear axles to compensate for the brief change in loads. In Normal mode,
PASM increases damping to prevent excess squat. In Sport mode, the damping is
softened to improve traction
New Sports Suspension
Porsche engineers have also configured a special new variant of PASM for the 2009
911 Carrera and Carrera S Coupes. Intended for the serious and skilled enthusiast
driver, the setup replaces the former sports suspension.
Like the previous passive sports suspension, the new, PASM sports suspension gives
the car an even firmer and tauter ride, at the same time lowering the entire vehicle by
0.79 inches (20 mm). This new suspension improves both handling performance and
comfort, compared with the passive system. The active sports suspension is
available together with the mechanical limited-slip differential, and either the manual
gearbox or PDK.
Stability is standard
Both the Carrera Coupe and Carrera S Coupe are equipped with enhanced Porsche
Stability Management (PSM) as standard equipment. For the newest models, PSM
now adds both Brake Pre-Filling and Brake Assistant, previously reserved for
Porsche’s all-wheel drive vehicles.
PSM is a computerized system that relies on data from an assortment of sensors to
help maintain the car’s intended path as the driver pushes it to the edges of its
dynamic limits. By comparing speed of the individual wheels, vehicle speed and
engine speed, PSM can determine that the car may be beginning to slip sideways or
that a tire is losing traction and beginning to spin.
To rein the car back under the driver’s control, PSM applies individual brake force to
a slipping wheel. If more drastic measures are required, PSM works with the engine
control module to reduce engine power briefly. PSM is programmed to intervene less
quickly when the car is moving below 45 mph (70 kmph) to allow the driver more latitude.
PSM uses advanced antilock brake sensors that take their readings from multipole
seats fitted directly on the wheel bearings. These signals allow more precise
processing and control than other types. Instead of conventional shaft valves, linear
solenoid valves adjust brake pressure with nearly infinite precision. To provide
pressure more quickly, an advanced hydraulic pump is used, thus eliminating the
need for a pre-charging pump and its connections.
Besides helping ensure stability, PSM boasts new functions. Critical among them is
Brake Pre-Filling which can shorten stopping distances in an emergency. Whenever
the driver lifts off the gas pedal abruptly, the system instantly pumps brake fluid from
the hydraulic PSM control unit to the brake calipers, placing the pads lightly against
the rotors before the driver’s foot actually hits the brake pedal.
The refined PSM also now has Brake Assistant which helps drivers apply full braking
force when needed. If the driver hits the brake pedal hard, but not with full force, PSM
instructs the hydraulic pump to apply the rest, right up to the ABS threshold.
Like all Porsche dynamic safety-enhancement systems, the enhanced PSM does not
interfere with a skilled enthusiast’s pleasure. If the driver doesn’t increase his
pressure on the brake pedal past a certain point, the additional pressure built up by
the system is reduced. Critically, the pressure booster does not always cut in.
And true to Porsche’s philosophy that the driver should always be in command of the
vehicle, PSM can be switched off by the driver, unlike some other systems. When
deactivated, the enhanced PSM remains off until the driver firmly hits the brake pedal,
reaching the ABS threshold on at least one front wheel. This allows the skilled
enthusiast driver more dynamic freedom. As with other Porsche performanceenchancing
technologies, PSM is non-intrusive, never abruptly wrestling control of the
car from the driver.
Variable-Ratio Steering
The 911 Carrera and Carrera S Coupes come with standard variable-ratio rack-andpinion
steering. This both increases agility and stability at higher speed maneuvers
and reduces steering effort at slow speeds.
When the steering wheel is turned within 30 degrees of center, the ratio is to provide
a smooth and calm driving experience, even on rough surfaces. However, when the
steering wheel angle exceeds 30 degrees, the ratio become more direct, reducing
lock-to-lock from 2.98 to 2.62 turns. This gives the driver better control both on
winding roads and in slow-speed parking maneuvers.
In addition to the variable ratio technology, the 911 Carrera Coupes have steering
columns that tilt and telescope. The wheel can be adjusted by 1.57 inches (40 mm) in
height and reach.
Incorporated in the steering system is an electric steering wheel lock as part of the
car’s antitheft immobilizer.
Looks That Count
The uniquely familiar shape of six generations of Porsche 911 Carrera Coupes has
defined the face of the sports-car manufacturer for generations of admirers. To
ensure that the newest models continue that trend, Porsche’s designers have subtly
refined the appearance of the 2009 models, giving the cars a look that is both
evolutionary and instantly recognizable as a Porsche 911.
As always, improved function as at the root of changes made by Porsche’s
designers. Critical among them are the new front air intakes which are larger than
before to increase the flow of cooling air for the enhanced drivetrains and brakes.
These air intlets also highlight the new front lighting units which sit above the front air
intakes. These horizontal lighting components have glass covers (with cleaners) and
each hold six light-emitting diodes for the daytime driving lights. These units also
cluster the positioning lights as well as the directional signals. The L.E.D. technology
is also now used for the brake lights and taillamps.
Let There Be Lots of Light
For 2009, both the 911 Carrera and Carrera S Coupes come standard with BIXENON
headlights. These bulbs provide more than twice the illumination of halogen bulbs.
As an option, both cars may be equipped with dynamic bending headlights. Thanks to
information from sensors which monitor steering wheel angle, vehicle speed and
lateral acceleration, the BI-XENON™ headlights swivel to mimic the movement of the
front wheels. The dynamic bending lights are activated as of a speed of 3 mph (5kmph).
The maximum turning angle of the inner headlight in a bend is 15 degrees, the
maximum turning angle of the outer headlight 7 degrees. Through these different
turning angles the road ahead is illuminated by the widest possible unbroken swath of
light. The dynamic bending lights operate with both low- and high-beams.
Classic Profile
The cars’ profiles are highlighted by the new larger outside mirrors and by the newly
designed wheels. The 911 Carrera’s 18 inch alloy wheels have by five double spokes
which are arranged so the each pair of spokes opens outward at the rim. The Carrera
S has larger, 19 inch wheels which have five pairs of parallel spokes.
The true Porsche aficionado will also spot the larger outside mirrors, which despite
their larger surfaces have a similar overall look as before. The larger mirrors do not
detract from the overall excellent aerodynamics. An easily over-looked but significant
detail is a water gutter extending above the edge of the mirror housing which reduces
dirt and water accumulation on the mirrors.
Looking Back
At the rear, the new exhaust pipes are integrated in the rear body panel. The 911
Carrera has individual oval tailpipes; the Carrera S shows double round tailpipes.
Black trim at the bottom of the rear apron disguises the distance between the
tailpipes and the rear panel, at the same time giving the back end more of a sporty appearance.
All the rear lights, save the reversing lamp, boast L.E.D. technology. The single-piece
rear light clusters each house the directionals, rear fog light, the reversing light, the
brakelamp, positioning light, and the reflector as one unit. Each cluster contains 60
diodes. Only the reversing light utilizes a bulb.
The light-emitting diodes react more quickly than standard bulbs: While the response
time of a conventional incandescent bulb is approximately 100 milliseconds, lightemitting
diodes have a response time of only about 0.1 milliseconds. The L.E.D.
lights also offer more luminosity and longer life than standard bulbs. The light units
themselves are tapered a more distinctly to the outside than before, merging
smoothly into the rear of the car. Red and silver-transparent lens covers add panache
to the look.
Moving Air Over, Around and Through the Metal
When developing the new Carrera models, Porsche’s engineers and designers strove
to guarantee a more-than sufficient flow of cooling air, regardless of ambient
temperatures and operating conditions. The fruits of their labors are two sports
coupes, each with a coefficient of drag of only 0.29.
An important factor contributing to this superior aerodynamic quality is the full
underbody cover interrupted only by a few cooling air intakes for the brakes and
transmission. Careful shaping of spoilers on the suspension components work with
the air ducts to keep the brakes cool.
The new, larger air scoops at the front increase the drivetrain cooling by 20 percent
over the previous versions. With the center intake guiding air to the two outer
radiators, there is no longer any need for a center cooler for the PDK transmission as
was needed on previous models with the Tiptronic S.
Resistance is Foolish
Porsche’s aerodynamicists worked with both body designers and suspension
engineers, leaving no stone unturned in the quest for efficient airflow. To ensure low
resistance and maximum stability, airflow over the body is carefully directed. Such
details as the rear windshield wiper mounted directly to the window glass rather than
to the bodywork, and the refined double-arm mounting of the outside rearview mirrors
are based in good aerodynamics.
Despite the fact that the outside mirrors have larger reflecting surfaces than earlier
models, their design keeps the side windows clean and reduces turbulence. The
mirrors even help guide moving air around the car toward the rear spoiler. The
spoiler itself automatically deploys at 75 mph (120 km/h) to enhance stability at
higher speeds. As vehicle speed drops below 50 mph (80 km/h), the spoiler is not
needed and so to reduce unwanted drag, it automatically retracts.
Less Lift, More Grip
Porsche’s aerodynamic engineers understand that airflow beneath the car is as
critical as the air moving over it. Therefore they imbued the 911 Carrera Coupe and
Carrera S Coupe with the high-speed stability that affords the driver confidence by
carefully managing the underbody air movement. Thanks to the body’s aerodynamic
details, the Coupe has a miniscule rear coefficient of lift of 0.02, and a front Cl of 0.05.
The Coupe’s underbody is almost entirely encased. When equipped with a manual
gearbox, the underbody carries six polypropylene sheets.
The flow of engine-cooling air is directed out of the radiators and into the wheel
arches rather than under the front tires. This helps with brake cooling and reduces
lift. Stability is further enhanced by transitional zones beneath the front of the car that
create a low-pressure area near the front axle.
Cooling Air
Special ram-air flaps around the engine fan boost cooling airflow at high speeds. At
low speeds, the flaps remain closed and air is drawn only through the radiator; at
around 45 mph (70 kmph), the flaps open under ram pressure. Special air ducts on
the underbody direct cooling airflow to the brake discs, transmission, and differential.
Wheel well spoilers reduce drag by guiding air around the wheels. Optimized brake air
spoilers and pivot bearings ensure effective air around the rotors, reducing disc
temperatures.
What’s Inside Counts, Too
The luxurious passenger cabins of the 2009 911 Carrera and 911 Carrera S Coupes
benefit from minor, but important refinements over their immediate predecessors.
Prime among these is a redesigned center console which houses the enhanced and
enlarged Porsche Communication Management (PCM) system and the availability of
ventilated front seats. The audio systems have been upgraded and the on-board
telephone features Bluetooth connectivity and available voice command. In addition,
the on-board computer offers additional functions, including the ability to check the
car’s service intervals.
An Era of Communication
The crux of many of these convenience enhancements is the revamped PCM. The
PCM is at the heart of all audio and communication functions. For the 2009 911
Carrera models, the PCM features a new, larger monitor with touchscreen controls.
By incorporating its controls into the touchscreen and eliminating the previous
version’s keyboard, Porsche’s engineers were able to increase the size of the screen
by 12 percent, from 5.8 inches to 6.5.
The new unit is also less complicated to use, with the number of keys halved to 16.
Menu logic has also been simplified, with the number of menus reduced from the
previous five to only three, and most important functions accessible from the main
menu.
The Sound of Music
The 911 Carrera Coupes’ standard audio system features AM/FM radio as well as the
ability to play CDs, audio and video DVDs. The standard-equipment BOSE Surround
Sound System features 5.1 Discreet Surround Format, and works with a gamut of
audio formats: MP3, AAC, WMA, Dolby Digital, MLP, and DTS.
The PCM has an integral six-CD/DVD changer standard which supports the same
formats as the single CD/DVD player. Plus, a new, optional universal audio interface
connects the PCM to an external audio source such as an iPod or a USB stick. An
optional TV tuner can receive uncoded television signals. While driving, only the TV
audio plays; when parked the picture is shown on the PCM monitor.
Expanded Navigation
For the first time the optional PCM navigation module comes with an integrated 40
GB hard disc. This modification significantly speeds up the calculation of routes over
the previous system, and offers the driver a choice of three alternative routes in
either a perspective-oriented or two-dimensional view. The navigation module also
includes critical points of interest, such as the nearest filling station, as well as an
elevation profile.
Look Ma, No Hands
The optionally available internal GSM telephone module offers two operating modes,
enabling the user, first, to make telephone calls with the SIM card placed in the phone
and, second, to automatically interconnect a compatible SAP-based mobile phone
(SIM access profile) and the telephone module via a Bluetooth connection. And with
the telephone being operated via PCM, the multifunction steering wheel or optional
voice control, the user is able to leave his phone in his pocket.
A voice command option is also now available for the enhanced PCM. Voice entry is
activated by pressing the button on the steering column lever for the on-board
computer, then enabling the user to access nearly all of the PCM’s functions simply
by speaking the command as it appears on the monitor. The system does not have a
learning period and responds to all speakers.
Plenty of Seating
Driver and passenger seats in the 911 Carrera and 911 Carrera S Coupes feature a
Porsche-patented system engineered to better absorb vibration on long trips. For
2009, both cars offer the option of ventilated seats.
Owners of both 911 Carrera and Carrera S Coupes can specify the ventilated/heated
seating option with either the standard or optional comfort front seats. One fan in the
seat cushion and one in the backrest can circulate air through the upholstery at one
of three speeds. Air flows to the fans through a special air guidance tissue connected
to hoses beneath and behind the seat. The fans have three speed settings and are
controlled by a center-console mounted switch. The ventilating fans will not operate if
the seat’s surface temperature is below 59 degrees F (15 degrees C), but can be
used with the heating function.
The standard front seats offer manual fore/aft and height adjustment. Backrest angle
is electrically controlled for finer adjustment.
All-electric seats are available and adjustable in 12 directions, including the angle of
the seat cushion and through lumbar support, via four inflatable air chambers. These
seats also have a memory feature.
There is also a choice of sport seats with even greater lateral support both in the
seat cushion and shoulder area. These seats also have firmer padding. Adaptive
sport seats combine the sport seats design with electrical controls. These seats have
four-dimensional adjustment, including width.
Finally, optional sports bucket seats, which are essentially race seats with folding
backrests, are available for those need or want maximum support while driving
aggressively. These seats boast carbon fiber-reinforced construction for a weight
savings of 15 to 20 pounds (7 to 9 kg) over standard seats, depending on model.
All Porsche front seats, including the sports bucket seats, have integrated thorax
airbags and are compliant with all U.S. safety standards. And they all have folding
backrests to allow access to the Coupe’s rear seats.
Choose Your Wheel
Porsche engineers believe that drivers should have a choice of steering wheels, given
that item’s critical importance. The standard steering wheel in the 911 Carrera and
911 Carrera S Coupe is a dynamic three-spoke design that is adjustable both in
height and reach. The wheel is built on a composite magnesium structure that
reduces the weight of the steering wheel assembly over the previous aluminum wheel.
A multifunction steering wheel is available as option. This wheel offers redundant
controls for the Porsche Communication Management (PCM) system. Without taking
his hand from the wheel, the driver can operate audio, navigation, and telephone equipment.
In addition to the standard leather colors to match the rest of the interior, the
multifunction steering wheel is available with wood grain, aluminum, or carbon-fiber
trim on its outer ring.
Breath of Fresh Air
Automatic climate controls with air and pollen filtration are standard equipment. The
controls for the heat, air conditioning and ventilation (HVAC) systems are integrated
into the center console. Airflow through the HVAC system is optimized by large ducts
and side vents.
Ample Storage Space
The cabins in the 911 Carrera Coupe and Carrera S Coupe offer the convenience of
several storage locations. The cars’ interiors have a load volume of 7.24 cu.-ft. (205 liters).
A large locking glove box provides nearly 400 cubic inches (6.5 liters) of room and
has an integrated CD storage rack and a penholder. The center console includes
more than 90 cubic inches (1.5 liters) of storage capacity. This compartment
automatically locks with the Coupes’ central locking system.
Additional storage pockets are located in the interior door panels with covers that
also serve as armrests. Another large storage area is located behind the rear seats.
Tipping the seatbacks forward expands this area.
Cupholders are located just above the glove box and are hidden behind a folding
cover. When released, the left cupholder emerges in front of the central air nozzle in
the instrument panel while the right cupholder rests in front of the front passenger nozzle.
Critical Data
The five dials that comprise the instrument panel are positioned to provide
outstanding readability. The faces of the dials are black in the 911 Carrera Coupe
and have an aluminum-look finish in the 911 Carrera S Coupe.
Given the sporting soul of the 911 Carrera and Carrera S Coupes, the tachometer
dominates the instrument cluster. The rev counter is the largest gauge and it is
mounted in the center of the display. A digital speedometer within the tachometer’s
face beneath the rev counter allows the driver to check both vehicle and engine
speed in a single glance.
The separate analog speedometer includes overall and trip odometers and is located
just to the left of the tachometer. The gauge to the right of the tach includes coolant
temperature and fuel indicators, as well as the clock. The oil temperature gauge is at
the far left of the cluster with the oil pressure gauge at the far right.
All the gauges have white light-emitting diodes that enhance illumination for night
driving.
Safe by Design
Thanks to the high- and ultra-high-strength steel as well as the sophisticated spotwelding
and bonding techniques used during their manufacture, the 911 Carrera
Coupe bodies are extremely torsionally rigid and flex resistant while still being lightweight.
Particular attention was paid in designing and engineering the junction of the A-pillars
and the roof frame, as well as the safety structure involved in head-on and offset
collisions, including the transition between the door and B-pillars. Forces in a collision
can be transferred through the door, around the passenger compartment to the rear
of the car.
A bulkhead crossbar at the front of the car is made from high-strength boron steel
and special assembly processes were developed to minimize intrusion or into the
foot well in an offset collision.
Six Airbags with POSIP
Occupants in the 911 Carrera and 911 Carrera S Coupes are protected, in the event
of a collision by six airbags. There are two front-impact airbags; two front seatmounted,
thorax protecting, side-impact airbags; and the two curtain-style, doormounted,
side-impact airbags that are part of the Porsche Side Impact Protection
(POSIP) system.
The frontal airbags are full-size, two-stage front units featuring an organic-based
propellant. This propellant reduces the stored airbags’ size and weight, and aids in
their recyclability.
The front passenger seat features sensors that accommodate child safety seats.
Should the sensors detect a child sitting in that seat, the airbag is defeated.
The POSIP boasts head airbags that deploy upward from their housings in the door
windowsills. These airbags provide a flat cushion that inflates to nearly 500 cu.-in. (8
liters) and are designed to help protect the heads of the driver and front-seat
passenger from broken glass and objects that might enter through the window, in the
event of an accident.
Sport Chrono Package Plus
Both the 911 Carrera and Carrera S Coupes are available with the optional Sport
Chrono Package Plus feature. Sport Chrono Package can be specified with either the
manual gearbox or PDK transmission.
This enhancement package brings specific control maps to the engine management
system and Porsche Stability Management (PSM), as well as to Porsche Active
Suspension Management (PASM) and PDK on vehicles so equipped.
The revised engine control maps strongly favor performance over comfort and
provide even quicker engine response, not only on deployment but also on release of
the throttle. This helps the PDK shift even more aggressively.
Stability thresholds allow more lateral slip before the ABS and PSM intervene. On
those cars with PASM, that system switches to its firmer setting to provide more
agility in cornering. However, in some instances, such as on wet pavement, a softer
suspension setting can be advantageous so the driver using Sport Chrono can press
the PASM button to return to the normal damper settings.
The Sport Chrono package also includes a digital/analog stopwatch and lap-counting
function.
