2011 Ferrari 458 Italia

2011 Ferrari 458 Italia

The Ferrari 458 Italia, is an 8-cylinder two-seater berlinetta with a mid-rear mounted engine, and represents a genuine break with the past in terms of Maranello’s previous high-performance sports cars.

Designed to fulfil the expectations and ambitions of our most passionate clients, the 458 Italia continues the Ferrari tradition of putting the thrill into driving as a result of track-derived technological innovations. Maranello’s racing experience can be felt not only in terms of pure technological transfer but also on a more emotional level, because of the strong emphasis on creating an almost symbiotic relationship between driver and car.

Styling and aerodynamics

Every Ferrari is the result of an uncompromising design approach that integrates styling and aerodynamic requirements. The Pininfarina design features compact, aerodynamic lines, underscoring the concepts of performance-oriented efficiency that inspired the project.

Engine

The engine is a dry-sump 90 degree V8 with a displacement of 4499 cc and is mid-rear mounted. It is an entirely new design engineered to reach a maximum of 9,000 rpm – a first on a road car – with a high 12.5:1 compression ratio and maximum power output of 570 CV. This equates to an outstanding power output of 127 CV/litre, a new benchmark for a naturally-aspirated production engine.
The generous torque available – 540 Nm at 6000 rpm, with over 80 per cent available from 3250 rpm – ensures rapid pick-up from all revs. The specific torque output of 120 Nm/l is another record.

The design of the engine components has been influenced by the carry-over of racing technology – F1 in particular – for maximum fluid-dynamic efficiency in order to achieve both performance and fuel consumption objectives, and meet the most stringent international emissions restrictions. The piston compression height was reduced as per racing engine practice. Similarly, thinner compression rings have been adopted to minimise friction between piston and liner. A graphite coating was applied to the piston skirt for the same reason.

To help further reduce internal friction, the cylinder block has four scavenge pumps. Two pick up oil from the cylinder heads and front and rear of the engine via dedicated oil recovery ducts outside the crankcase area, and two pick up oil from below the crank throws. The recovery ducts of the latter are interconnected in two groups of four cylinders to optimise the scavenge function and create a strong vacuum (800 mbar) around the crankshaft. This solution prevents excess oil splashing out of the sump and onto the rotating crankshaft and thus reduces power loss caused by friction. It also reduces losses due to windage caused by the pumping action of the pistons.
The engine oil pressure pump features variable displacement geometry which reduces the amount of power absorbed at high revs. Lowering the pump’s displacement actually increases the power available at the crankshaft for the same amount of fuel used.

As is traditional for Ferrari engines, the new V8 is equipped with continuously variable timing on both inlet and exhaust cams. The aluminium intake manifold has been lightened by reducing the wall thickness. It has short, almost straight inlet tracts to reduce losses and a system that varies the geometry of the manifold, optimising the volumetric efficiency throughout the rev range. This is achieved by incorporating three pneumatic throttle valves in the central section between the two plenums. The engine mapping provides four different configurations of the valves for optimum torque values at all revs.

The use of GDI with Split Injection improves engine performance by modulating the injection in two phases, increasing combustion efficiency and the torque at low revs (by up to 5 per cent). A high injection pressure (200 bar) guarantees adequate pulverisation of the petrol and an optimal air/fuel mix right up to 9000 rpm. This feature again results in better performance and lower fuel consumption. The exhaust system was designed to provide the kind of thrilling soundtrack owners of Ferrari’s V8s are used to whilst also guaranteeing high levels of acoustic comfort. One of the main objectives with the exhaust was to reduce weight. The catalytic converter is attached to the central section of the exhaust by a flexible element to reduce the amount of vibration transmitted and to thus allow thinner metal to be used. Similarly the pre-catalytic converter has been eliminated, lowering overall weight and reducing back pressure whilst still respecting strict Euro 5 and LEV2 emissions.

Gearbox

One of the important novelties on the 458 Italia is the introduction of the 7-speed F1 dual-clutch gearbox which guarantees faster yet smoother changes. The technology is based on the independent management of even and odd gears which are pre-selected using two separate input shafts. The gear shifting time (the overlap between the opening and closing phases of the two clutches) is zero and thus there is no interruption of engine torque to the driven wheels. Compared to the California gearbox, response times have been reduced and the 458 Italia has specific, sportier gear ratios to match the power and torque curves of the new V8, guaranteeing high torque even at lower revs. The E-Diff 3 electronic differential has also been integrated into the gearbox, resulting in a more compact and lighter unit.

Suspension and steering

The 458 Italia’s front suspension employs a novel new double wishbone set-up which features an L-shape design for the lower wishbone, with the rearward facing arm longer than the one in line with the wheel axis to provide greater longitudinal flexibility. This in turn improves the car’s ability to absorb bumps and it also reduces suspension noise.
Another benefit is in terms of greater transverse rigidity which improves handling. The same characteristics are shared by the new rear multi-link suspension and, combined with specific tyre development, overall vertical rigidity has thus been improved (+35 per cent with respect to the F430) for less body roll, and the engineers were able to introduce a more direct steering ratio (11.9° compared to the F430’s 16.9°, a reduction of 30 per cent) which makes for quicker and more responsive steering on both road and track.

The 458 Italia also features the latest, second-generation Magnetorheological Suspension Control shock absorber system. Compared to the system first introduced on the 599 GTB Fiorano, SCM2 boasts an evolved ECU (-50 per cent input time) and a damper force generation time of 8 ms compared to the 599’s 15 ms. There is also a new piston rod bushing in the damper which reduces internal friction (-35 per cent) for more precise small-bump control and improved ride comfort.

High-performance ABS

Since the beginning of 2008 Brembo carbon-ceramic brakes have been standard on all Ferraris. The 458 Italia is no different and is equipped with 6-pot aluminium callipers with 398 x 223 x 36 mm discs at the front, and 4-pot aluminium callipers with 360 x 233 x 32 mm discs at the rear.

The 458 Italia boasts outstanding braking distances (100-0 km/h in 32.5 metres; 200- 0 km/h in 128 metres) thanks to the development and optimisation of the Bosch control logic and the evolution of Ferrari’s Pre-Fill logic, which reduces response times by activating the pistons in the callipers, thus minimising the gap between the brake pad and the disc as soon as the driver lifts off the accelerator. Similarly, these excellent results were achieved thanks to a specific calibration of the ABS for medium/high grip surfaces, and by integrating the ABS control logic with that of the E-Diff 3 to ensure a more accurate estimate of the vehicle speed and hence better braking torque control, as well as enhanced vehicle stability.

Vehicle dynamics and electronics

On the 458 Italia the E-Diff and F1-Trac control software are integrated in the same ECU. This minimises communication times between the two systems and, at the same time, the individual logics were evolved to improve vehicle performance.
A new Power On strategy has been developed for the E-DIff governing traction out of corners and is integrated with the F1-Trac logic, an evolution in the combined action of both systems which is also connected with the high-performance ABS control logic, which is specially set up for high-grip surfaces.

The electronic differential continuously distributes torque to the rear wheels, both in Power Off (turning in for the corner) and Power On (accelerating out of the corner), guaranteeing excellent vehicle stability and control in all driving conditions and on all surfaces. The E-Diff 3 now works in a more integrated manner with the F1-Trac, using a series of F1-Trac parameters and evaluations (such as estimates of grip) both in manettino positions in which the F1-Trac is inserted (Sport – Race) and those in which it is deactivated (CT Off and CST Off). Compared to previous versions, E-Diff 3 delivers improved torque distribution coming out of corners (in Sport, Race, CT Off and CST Off), which translates into improved grip, better roadholding and more progressive handling on the limit. The result is an improvement of 32 percent in longitudinal acceleration out of corners compared to previous models and a lap time at Fiorano of just 1″ 25 seconds.

Chassis

The modular chassis is an all-new design. New alloys join the traditional aluminium, along with high-resistance aluminium extrusions, developed by the aviation industry, and innovative manufacturing processes, such as heat-forming. The aim was to keep weight down to the benefit of performance and handling. The result is a chassis with improved structural rigidity, with torsional rigidity up 15 per cent compared to the F430, and beam stiffness up 5 per cent.

Aerodynamics

Every Ferrari is the result of an uncompromising design approach that integrates styling and aerodynamic requirements. The Pininfarina design features compact, aerodynamic lines, underscoring the concepts of performance-oriented efficiency that inspired the project.

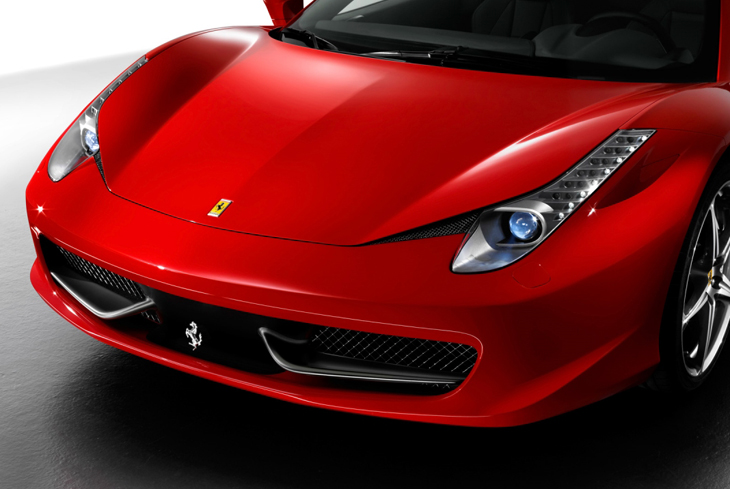

The nose features a single opening for the front grille and side air intakes, with aerodynamic sections and profiles designed to direct air to the coolant radiators and the new flat underbody. The nose also sports small aeroelastic winglets which generate downforce and, as speed rises, deform to reduce the section of the radiator intake and cut drag.

The oil radiators for the F1 gearbox and the dual-clutch are situated in the tail and air is fed from two intakes on the top of the rear wings. This solution provides a base bleed effect, an aerodynamic function that was developed by Ferrari for the FXX and which reduces drag by feeding the hot air out of the radiators under the nolder and into the slip stream. Using experience gained in aerodynamic development on the Ferrari F430 GT2, the flat underbody now incorporates the air intakes for engine bay cooling. These are positioned ahead of the rear wheelarches where they use pressure differences to efficiently channel air flow to the engine bay, at the same time generating more rear downforce.

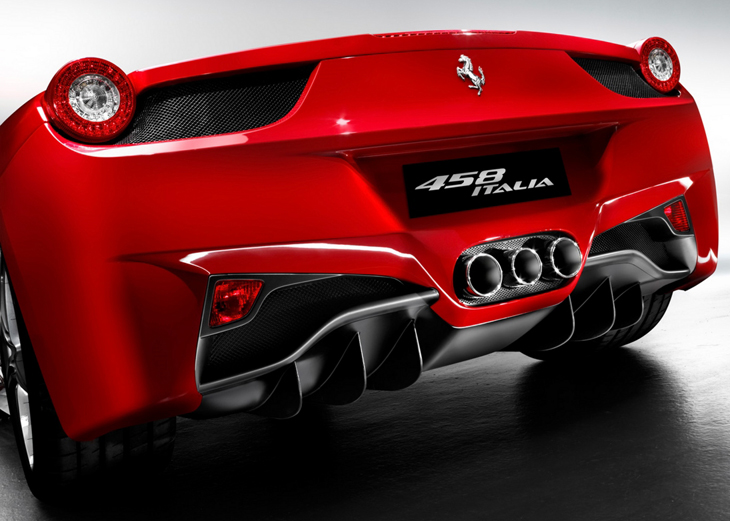

The car’s sills are characterised by two keel forms that act as fairings to the rear wheels, while the rear bodywork between the rear diffusers acts as the surround to the novel triple exhaust tail pipes, a styling cue that recalls the legendary F40 and gives the 458 Italia’s tail an aggressive sporty stance. The engine, in mid-rear V8 Ferrari tradition, is visible below the engine cover.
Technical development of the car’s shaped started using CFD (Computational Fluid- Dynamic) techniques which helped optimise the management and interaction of the internal flows prior to wind tunnel testing. The latter was carried out on Ferrari’s rolling road facility using modular 1:3 scale models. The final solution chosen ensured adequate cooling to the running gear, while, at the same time, achieving a high level of aerodynamic efficiency (1.09) through excellent drag and downforce figures (Cd 0.33 and Cl 0.36 respectively) with 140 kg of downforce at 200 km/h and no less than 360 kg at top speed.

The front-mounted coolant radiators are trapezoidal in shape and positioned to minimise the impact of the internal cooling flows on drag and downforce. The oil radiators for the gearbox and clutch are are situated in the tail with air fed from two intakes on the top of the rear wings. The hot air from the radiators creates a base bleed effect, venting into the car’s low-pressure trail below the nolder and reducing drag. The air intakes for engine bay cooling are situated on the aerodynamic underbody, where differences in pressure channel the air in the most efficient manner, and are positioned to increase rear downforce. Similarly air is channelled from the front air dam to the rear diffuser where the position and number of the fences has been developed to optimise the distribution of the vortex to improve rear downforce.

458 Italia ~ Technical specifications

Dimensions and Weight

      • Overall length………………..4527 mm (178.2 in.)
      • Overall width………………..1937 mm (76.3 in.)
      • Height………………..1213 mm (47.8 in.)
      • Wheelbase………………..2650 mm (104.3 in.)
      • Dry weight………………..1380 kg (3042 lbs) With forged wheels and Racing seats
      • Weight/power ratio………………..2,42 kg/CV (7.16 lbs/kW)
      • Weight distribution fr/r………………..42%/58%

Engine, Gearbox & Electronics

      • Type………………..V8 – 90°
      • Total displacement………………..4499 cc (274.5 cu in.)
      • Maximum power………………..570 CV (425 kW) @ 9000 rpm [Including 5 CV of ram effect]
      • Maximum torque………………..540 Nm (398 lbs/ft) @ 6000 rpm
      • Specific power output………………..127 CV/l
      • Compression ratio………………..12.5:1
      • Tyres………………..[Front: 235/35 ZR20 8.5″][Rear: 295/35 ZR20 10.5″]
      • Gearbox………………..Dual-clutch, 7-speed F1
      • Electronics………………..E-Diff3, F1-Trac, high-performance ABS

Performance

      • Maximum speed………………..325 km/h (202 mph)
      • 0-100 km/h………………..3.4 s

Fuel Consumption + Emissions

    • Fuel consumption………………..13.3/100 km  [Combined cycle (ECE+EUDC)]
    • Emissions………………..307 g CO2/km  [Combined cycle (ECE+EUDC)]

Exterior

Exterior Colors (Standard Colors) Non metallic

  • Bianco avus (White)
  • Giallo Modena (Yellow)
  • Rosso corsa (Deep Red)
  • Rosso scuderia (Ferrai Red)
  • Rosso mugello (deep Deep Red)
  • Blu pozzi (Dark Blue)
  • Nero (Black)
  • Other Color Styles:
    Metallic Colors and 1950s-60s Colors

Wheels

20″ Painted Standard rims
Standard rims with dark chrome finishing
20″ forged sport rims
20″ forged sport rims diamond finish

Brake Calipers Colors

  • Nero (black)
  • Argento alluminio (silver)
  • Rosso corsa (Deep Red)
  • Rosso scuderia (Ferrai Red)
  • Giallo Modena (Yellow)

——————————

Infotainment

  • Premium Hi-Fi system
  • iPod
  • Satellite Navigation system

Options

  • Carbon Fibre Steering Wheel with LEDs
  • Cruise control
  • Satellite Radio
  • Navtrack anti-theft system
  • Painted inner Grilles
  • Thermo insulating windscreen
  • Smoker kit
  • Fire extinguisher
  • Luggage set for boot
  • Luggage set for rear bench
  • Suit holder
  • Dedication plate
  • Carbon Fibre trim
    • dashboard
    • tunnel console
    • exterior still kick
    • lower zone
    • drivers zone (around Rev Counter)

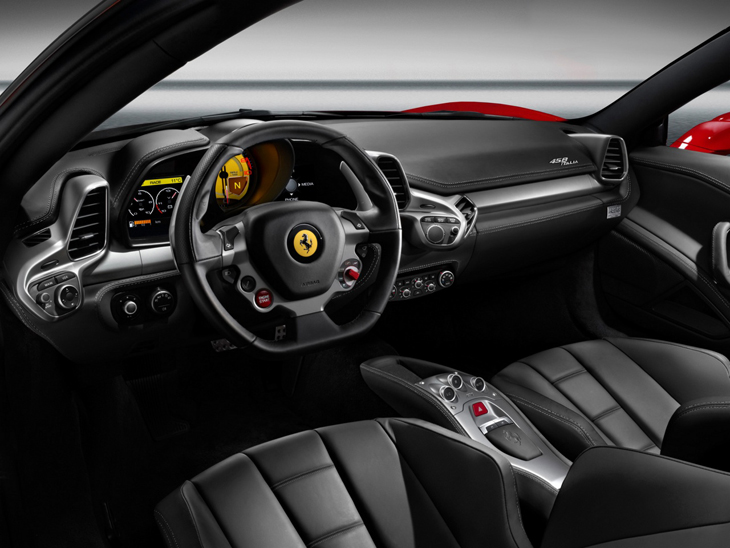

Interior

Interior Colors

  • Tans
    • Crema
    • Sabbia
    • Beige
    • Cuoio
  • Reds
    • Rosso
    • Bordeaux
  • Blues
    • Carta da zucchero
    • Blu medio
    • Blu scuro
  • Grays
    • Grigio scuro
    • Charcoal
  • Black & Browns
    • Nero (black)
    • Iroko  (browns)
    • Ciocoolato (browns)
    • Terra bruciata (browns)

Seat Types

  • Standard Seats
  • Daytona Style seats
  • Diamond pattern style seats
  • Carbon fibre racing seats

Interior Colors & Trims

  • Crema  (tans)
  • Sabbia (tans)
  • Beige  (tans)
  • Cuoio  (tans)
  • Rosso  (reds)
  • Bordeaux (reds)
  • Carta da zucchero  (blues)
  • Blu medio  (blues)
  • Blu scuro  (blues)
  • Grigio scuro (grays)
  • Charcoal (grays)
  • Nero (Black)
  • Iroko  (browns)
  • Ciocoolato (browns)
  • Terra bruciata (browns)

Rev Counter

  • Nero (black)
  • Bianco (white)
  • Rosso (Red)
  • Giallo (Yellow)
